Description

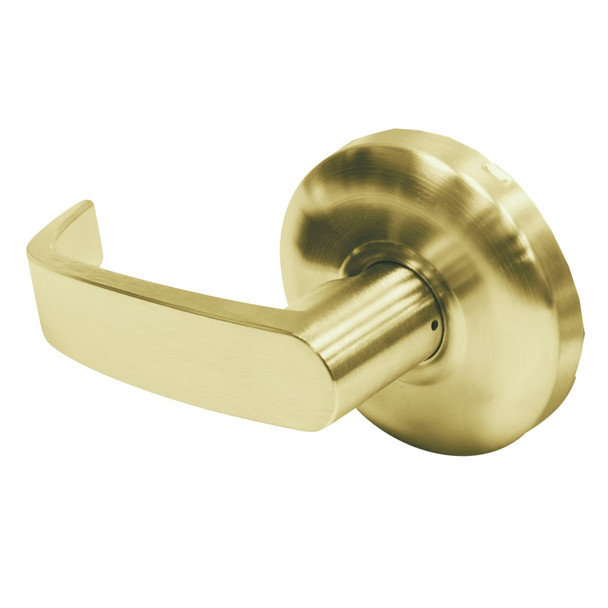

The Sargent 6500 Series 65U93 KL is a standard duty key-in-lever cylindrical lock engineered to exceed ANSI A156.2 Series 4000 Grade 2 requirements. Ideal for commercial and institutional doors, this universal-hand lock provides reliable keyed access control for interior and passage applications on doors 1-3/8" to 1-3/4" thick.
This lock accommodates standard 2-3/4" backset (2-3/8" optional) and ships with two nickel silver keys, a 6-pin brass cylinder in LA keyway, and your choice of multiple finishes and strike options. As an authorized Sargent dealer, E.D. Locks provides expert product selection and fast shipping. Contact our team at sales@edlocks.com or 1-877-207-6067 for specification guidance or custom configurations.
Specifications
- Door thickness: 1-3/8" to 1-3/4" (35mm to 44mm)
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Cylindrical housing: Steel zinc dichromate finish
- Front plate: Wrought brass and stainless steel, 2-1/4" x 1-1/8"
- Latch: Brass, 1/2" throw
- Cylinder: Brass, 6-pin, LA keyway standard
- Keys: Two nickel silver
- Hand: Universal
- Strike options: 600 Curved Lip (brass or stainless standard), 808 ANSI Curved Lip, 505 Full Lip
- Available finishes: 3, 4, 10, 10B, 26, 26D
- ANSI compliance: A156.2 Grade 2; door prep A115.2 (161)
- Minimum stile: 4-1/2"
