Description

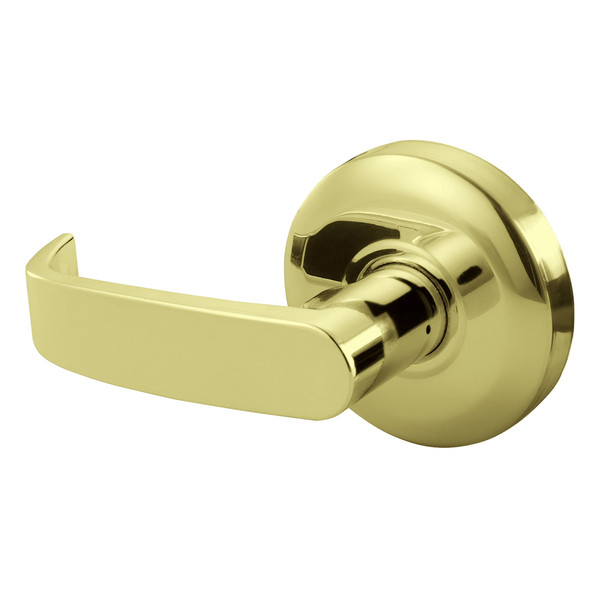

The Sargent 6500 Series 65U93 KL is a standard-duty key-in-lever cylindrical lock built to ANSI A156.2 Series 4000 Grade 2 specifications. Ideal for commercial and institutional doors requiring reliable keyed access control, it solves the need for durable, code-compliant locking hardware on medium-traffic interior and exterior openings.
This lock fits doors 1-3/8" to 1-3/4" thick with a standard 2-3/4" backset (2-3/8" optional). It features universal hand installation, brass 1/2" throw latch, and your choice of strike styles. As an authorized Sargent dealer, E.D. Locks provides expert sizing guidance and keying assistance at sales@edlocks.com or 1-877-207-6067 to ensure proper fit and function.
Specifications
- Door thickness: 1-3/8" (35mm) to 1-3/4" (44mm)
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional
- Front plate: Wrought brass and stainless steel, 2-1/4" x 1-1/8"
- Latch: Brass, 1/2" throw
- Cylinder: Brass, 6-pin, LA keyway standard
- Keys: Two nickel silver
- Hand: Universal
- Finishes: 3, 4, 10, 10B, 26, 26D
- Strike options: 600 Curved Lip (standard), 808 ANSI Curved Lip (28-prefix), 505 Full Lip (14-prefix)
- Minimum stile: 4-1/2"
