Description

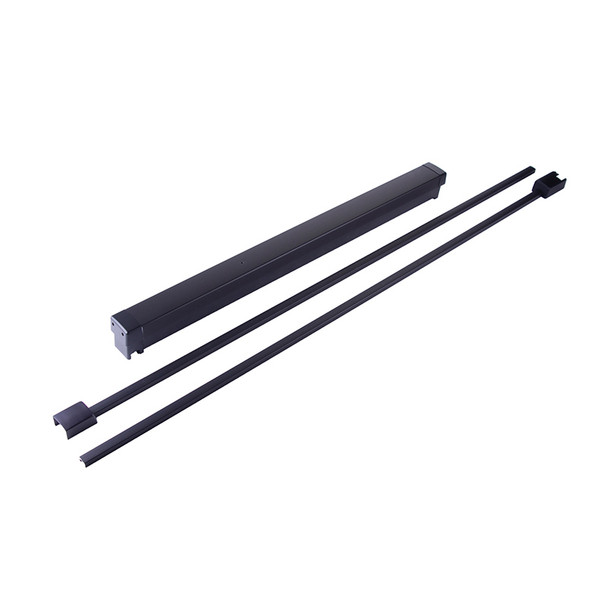

The Adams Rite 8133LR-36 is a heavy-duty exit device designed for hollow metal and wood doors up to 36 inches wide. It features electric latch retraction and a non-handed aluminum pushbar, making it ideal for commercial buildings, healthcare facilities, and high-traffic entrances that require reliable emergency egress and controlled access.
This device fits standard 1-3/4 inch door thickness up to 2-1/4 inches and accommodates doors up to 8 feet tall. The bar height adjusts from 30 to 44 inches to meet code requirements. For compatibility details, keying options, tall door configurations, or professional installation guidance, contact E.D. Locks' expert team at sales@edlocks.com or 1-877-207-6067 as an authorized Adams Rite dealer.
Specifications
- Brand: Adams Rite
- Model: 8133LR-36
- Product Type: Exit Device with Electric Latch Retraction
- Door Width: 36 inches
- Door Thickness: 1-3/4 inch standard, up to 2-1/4 inch
- Maximum Door Height: 8 feet (bar height 40-44 inches)
- Bar Height Range: 30 to 44 inches (adjustable)
- Pushbar Material: Extruded aluminum, anodized
- Projection: 2-15/16 inch fully projected, 1-15/16 inch dogged
- Door Types: Hollow metal, wood doors
- Handing: Non-handed, field reversible lever entry trim
- Dogging: Standard hex key dogging (cylinder dogging available separately)
- Minimum Stile Width: 3-3/4 inches
- Warranty: Five year limited
