Description

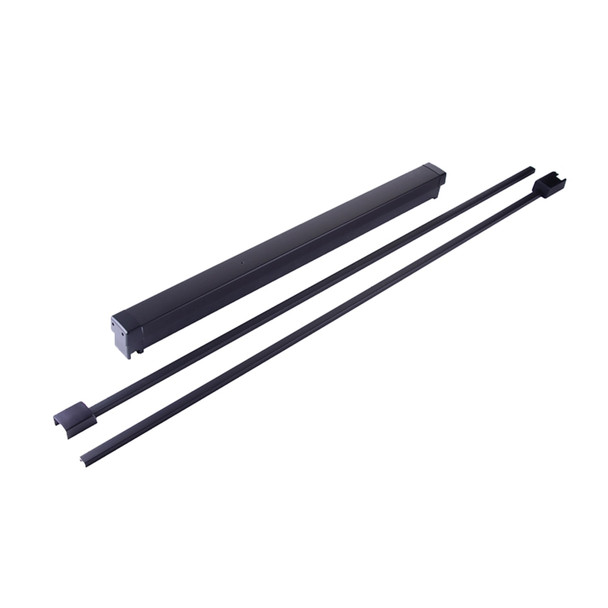

The Adams Rite 8222MLR-42 is a Grade 1 narrow stile surface vertical rod exit device designed for aluminum applications. It features motor latch retraction and electric dogging, making it ideal for high-traffic commercial doors that require reliable emergency egress and controlled access. This non-handed device solves security and life-safety requirements in modern buildings.
Compatible with standard 1-3/4" to 2-1/4" door thickness and aluminum stiles minimum 3-7/8" wide, this device fits doors up to 8 feet tall (10 feet with optional tall door kit). Installation uses standard self-tapping screws on narrow stile applications. As an authorized Adams Rite dealer, E.D. Locks provides expert guidance on handing, keying, and compliance. Contact sales@edlocks.com or call 1-877-207-6067 for installation support.
Specifications
- Brand: Adams Rite
- Model: 8222MLR-42
- Product Type: Surface Vertical Rod Exit Device
- Grade: 1
- Pushbar Length: 42"
- Finish: Dark Bronze Anodized Aluminum
- Material: Extruded aluminum pushbar
- Door Thickness: 1-3/4" to 2-1/4"
- Minimum Stile Width: 3-7/8"
- Bar Height Adjustment: 30" to 44"
- Maximum Door Height: 8 feet (standard)
- Projection: 2-15/16" fully projected, 1-15/16" dogged
- Handing: Non-handed, field reversible
- Dogging: Electric dogging
- Latch Retraction: Motor latch
- Fasteners: Self-tapping screws (optional sex bolt kits available)
- Warranty: Five year limited
