Description

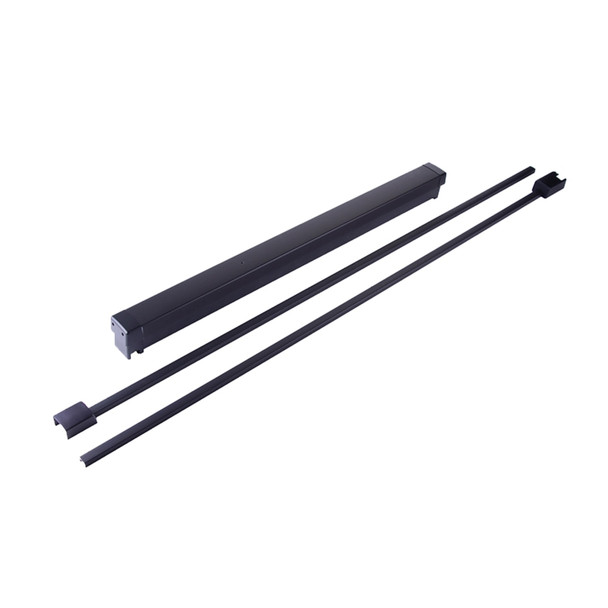

The Adams Rite 8222MLR-48 is a Grade 1 narrow stile surface vertical rod exit device designed for aluminum storefront and curtainwall applications. With motor latch retraction and electric dogging, it combines code compliance with convenient hands-free operation, ideal for high-traffic commercial entrances requiring ADA accessibility and reliable emergency egress.
This 48-inch device fits standard 1-3/4" to 2-1/4" door thickness and adjusts to accommodate doors up to 8 feet tall. The non-handed design and field-reversible lever trim simplify installation on new or retrofit projects. As an authorized Adams Rite dealer, E.D. Locks provides expert configuration guidance and warranty support: contact sales@edlocks.com or call 1-877-207-6067 for keying, cylinder selection, or tall door kit recommendations.
Specifications
- Brand: Adams Rite
- Model: 8222MLR-48
- Grade: 1
- Application: Aluminum narrow stile
- Pushbar Length: 48 inches
- Bar Height Adjustment: 30 inches to 44 inches
- Door Height Rating: Up to 8 feet (with bar at 40-44 inches)
- Door Thickness: 1-3/4 inches standard, up to 2-1/4 inches
- Minimum Stile Width: 3-3/4 inches
- Finish: Dark bronze anodized aluminum
- Projection: 2-15/16 inches (extended), 1-15/16 inches (dogged)
- Dogging: Electric dogging included
- Handing: Non-handed, field reversible
- Warranty: Five year limited
