Description

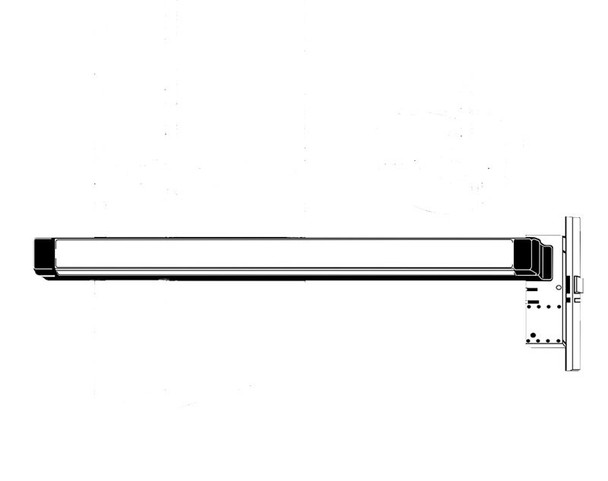

The Adams Rite 8312-7136 is a mortise exit device designed for hollow metal and wood doors in commercial buildings. Built with an extruded aluminum pushbar available in multiple finishes, it solves the need for reliable, code-compliant emergency egress on medium-duty applications. Ideal for facilities managers and builders prioritizing durability and ease of installation.
This device fits standard 1 3/4 inch to 2 1/4 inch door thicknesses and adjusts from 30 to 44 inches in height, accommodating doors up to 8 feet tall. The non-handed design with field-reversible lever trim simplifies inventory and installation. As an authorized Adams Rite dealer, E.D. Locks offers expert product selection and technical support. Contact our team at sales@edlocks.com or 1-877-207-6067 for handing, finish, and cylinder options tailored to your project.
Specifications
- Brand: Adams Rite
- Model: 8312-7136
- Type: Mortise Exit Device
- Pushbar Material: Extruded Aluminum
- Pushbar Length: 36 Inch
- Bar Height Adjustment: 30 to 44 Inches
- Door Thickness: 1 3/4 Inch to 2 1/4 Inch
- Maximum Door Height: 8 Feet (40 to 44 Inch Bar Height)
- Minimum Stile Width: 3 3/4 Inch
- Projection: 2 15/16 Inch (Fully Extended), 1 15/16 Inch (Dogged)
- Handing: Non-Handed
- Dogging: Standard Hex Key (Cylinder and Electric Dogging Available Separately)
- Door Types: Hollow Metal, Wood
- Fasteners: Self-Tapping Screws (Sex Bolt Kits Available Separately)
- Warranty: Five Year Limited
