Description

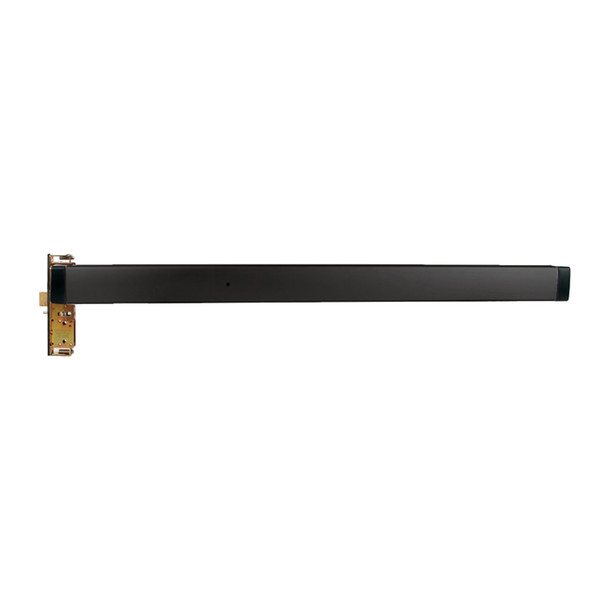

The Adams Rite 8322-8236 is a mortise exit device engineered for hollow metal and wood doors in commercial buildings. It delivers reliable emergency egress with an extruded aluminum pushbar available in multiple finishes. Ideal for facility managers and security professionals seeking code-compliant life safety hardware.
This device fits standard 1-3/4" to 2-1/4" door thickness and doors up to 8 feet tall, with adjustable bar height from 30" to 44". The non-handed design simplifies inventory and installation. Compatible with standard rim cylinders and optional mortise cylinders (sold separately). As an authorized Adams Rite dealer, E.D. Locks provides expert guidance on specification, compatibility and installation. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: Adams Rite
- Model: 8322-8236
- Door Type: Hollow metal, wood doors
- Handing: Non-handed, field reversible entry trim
- Pushbar Length: 36 inch (standard sizes 30", 36", 42", 48"; field cuttable)
- Bar Height: Adjustable 30" to 44"
- Door Height: Fits up to 8 feet (tall door kit available separately)
- Door Thickness: 1-3/4" standard, up to 2-1/4"
- Minimum Stile Width: 3-3/4"
- Projection: 2-15/16" projected, 1-15/16" dogged
- Material: Extruded aluminum pushbar
- Finish: Dark Bronze
- Dogging: Hex key standard; optional cylinder or electric dogging available
- Fasteners: Self-tapping screws standard; optional sex bolt kits available
- Cylinder Compatibility: Standard rim cylinders; optional mortise cylinders (1" to 1-1/4" length)
- Warranty: Five year limited
