Description

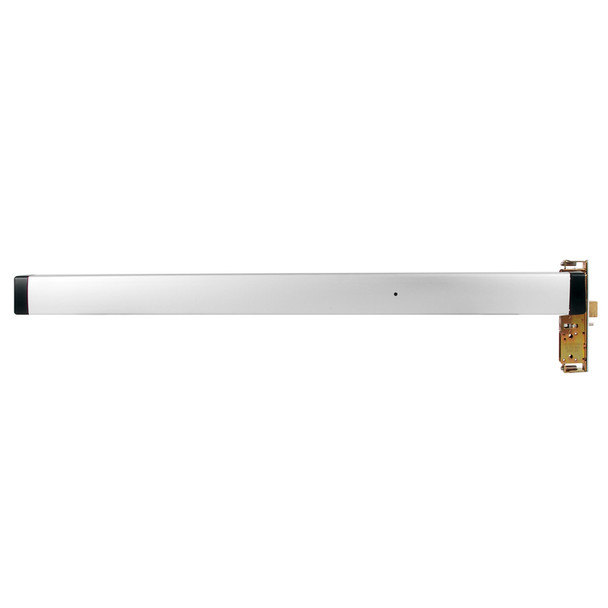

The Adams Rite 8414SE27136 is a mortise exit device engineered for narrow stile aluminum doors. Featuring silent electric latch retraction, this right-hand reverse (RHR) device is ideal for high-traffic commercial entrances where quiet operation and reliable egress control are essential. The extruded aluminum pushbar is available in multiple finishes and fits standard 30" to 48" openings.
This non-handed device suits door thicknesses from 1-3/4" to 2-1/4" and accommodates doors up to 8 ft tall (10 ft with optional Tall Door Kit). It accepts standard rim cylinders and includes field-reversible lever entry trim. As an authorized Adams Rite dealer, E.D. Locks provides expert product selection and support. Contact our team at sales@edlocks.com or 1-877-207-6067 for application guidance and keying options.
Specifications
- Brand: Adams Rite
- Model: 8414SE27136
- Type: Mortise Exit Device, Silent Electric Latch Retraction
- Handing: Right-Hand Reverse (RHR), Non-Handed Lever Trim
- Pushbar Lengths: 30", 36", 42", 48" (field cuttable)
- Bar Height Adjustment: 30" to 44"
- Door Height: Up to 8 ft standard, 10 ft with optional kit
- Door Thickness: 1-3/4" to 2-1/4"
- Minimum Stile Width: 3-3/4"
- Projection: 2-15/16" extended, 1-15/16" dogged
- Materials: Extruded aluminum pushbar, anodized finishes
- Dogging: Hex key or optional cylinder dogging
- Cylinder Compatibility: Standard rim cylinders, mortise cylinders with MS cam (1" to 1-1/4")
- Warranty: Five year limited
