Description

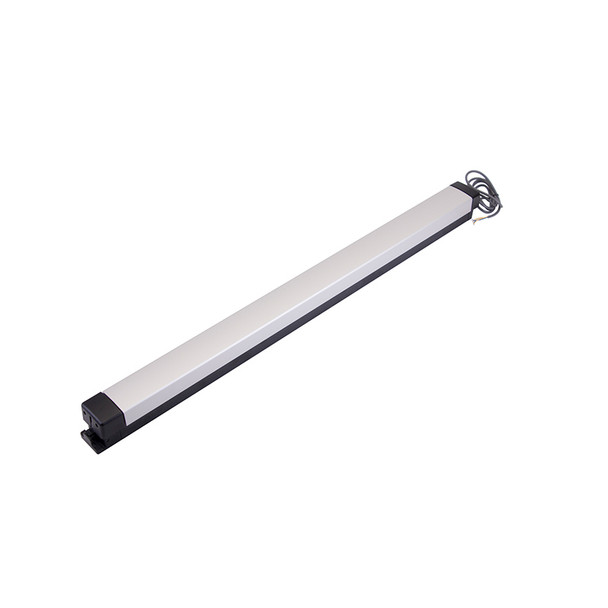

The Adams Rite 8801SE30 is a rim exit device designed for narrow stile aluminum doors. It features silent electric latch retraction, making it ideal for facilities requiring discreet access control without audible engagement. The non-handed, field-reversible design works on standard doors up to 8 feet tall, with pushbars available for 30", 36", 42", and 48" openings.
This device fits door thicknesses from 1-3/4" to 2-1/4" and accommodates stile widths as narrow as 3-3/4". For tall door applications up to 10 feet, the optional 8055 Tall Door Kit is available separately. As an authorized Adams Rite dealer, E.D. Locks provides expert guidance on configuration, cylinder selection, and installation. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for personalized support and a five-year limited warranty.
Specifications
- Brand: Adams Rite
- Model: 8801SE30
- Type: Rim Exit Device with Silent Electric Latch Retraction
- Application: Narrow Stile Aluminum Doors
- Handing: Non-handed, Field Reversible
- Pushbar Lengths: 30", 36", 42", 48" (field cuttable to smaller widths)
- Bar Height Adjustment: 30" to 44"
- Standard Door Height Capacity: Up to 8 ft
- Door Thickness: 1-3/4" to 2-1/4"
- Minimum Stile Width: 3-3/4"
- Projection: 2-15/16" fully projected, 1-15/16" dogged
- Dogging: Standard hex key or optional cylinder dogging
- Finish: Aluminum, anodized or clad options
- Warranty: Five year limited
