Description

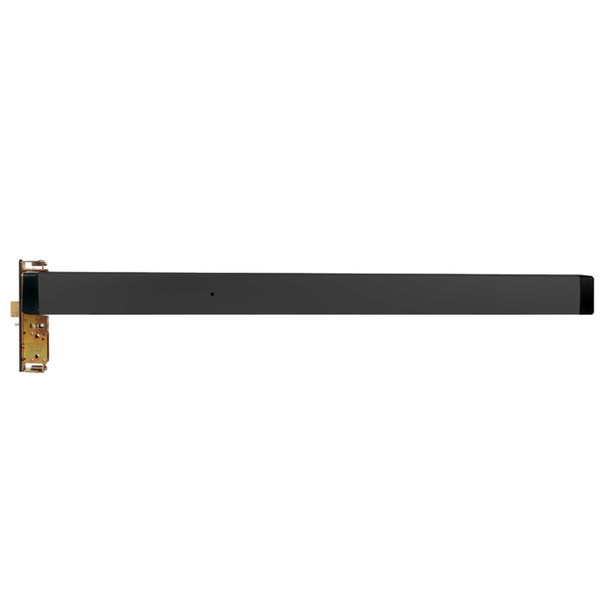

The Adams Rite 8430 is a mortise-mounted exit device designed for narrow-stile aluminum doors up to 8 feet tall. Built for left-hand reverse (LHR) applications, it features an extruded aluminum pushbar with anodized black finish. This device solves code-compliance and emergency egress needs for commercial buildings, storefronts, and institutional facilities.
Compatible with standard 1-3/4" door thickness and minimum 3-3/4" stile width, the 8430 adjusts from 30" to 44" bar height and accepts rim cylinders for keyed control. Installation uses standard self-tapping screws or optional sex bolt kits. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on handing, cylinder selection, and tall-door options.
Specifications
- Backset: 1-1/8"
- Pushbar Length: 48" (field cuttable to smaller widths; standard sizes 30", 36", 42")
- Bar Height Adjustment: 30" to 44"
- Door Height: Up to 8 ft (10 ft with optional 8055 Tall Door Kit)
- Door Thickness: 1-3/4" standard, up to 2-1/4"
- Minimum Stile Width: 3-3/4"
- Projection: 2-15/16" extended, 1-15/16" dogged
- Material: Extruded aluminum, anodized
- Finish: Black
- Handing: Left-Hand Reverse (LHR), non-handed device with field-reversible trim
- Dogging: Standard hex key (cylinder and electric options available)
- Cylinder Compatibility: Standard rim cylinder (ANSI/BHMA Function 03) or mortise cylinder with MS cam
- Warranty: Five-year limited
