Description

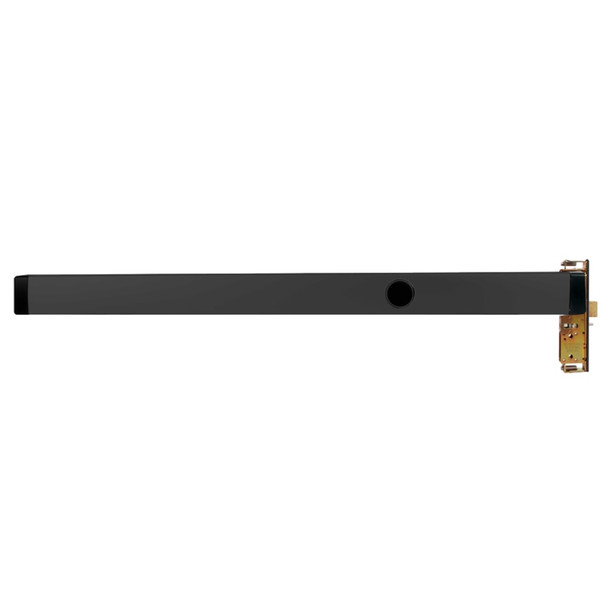

The Adams Rite 8430C-37348 is a mortise exit device designed for narrow stile aluminum doors up to 48 inches wide. Built for right-hand-reverse (RHR) operation with cylinder dogging, this push-bar exit solution meets life safety codes for commercial buildings, schools, and multi-tenant properties requiring secure emergency egress hardware.
This device fits standard 1-3/4" to 2-1/4" door thickness and doors up to 8 feet tall, with adjustable bar height from 30" to 44". It accepts standard rim cylinders and features a durable extruded aluminum pushbar. For detailed compatibility verification, specification sheets, and installation support, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Adams Rite
- Model: 8430C-37348
- Device Type: Mortise Exit Device
- Backset: 1-1/8 inch
- Application: Narrow Stile Aluminum Doors
- Handing: Right-Hand-Reverse (RHR)
- Pushbar Length: 48 inch
- Dogging: Cylinder Dogging
- Finish: Black
- Pushbar Material: Extruded Aluminum
- Bar Height Adjustment: 30 inch to 44 inch
- Door Height Compatibility: Up to 8 feet
- Door Thickness: 1-3/4 inch to 2-1/4 inch
- Minimum Stile Width: 3-3/4 inch
- Projection: 2-15/16 inch (extended), 1-15/16 inch (dogged)
- Cylinder Compatibility: Standard Rim Cylinder
- Warranty: Five Year Limited
