Description

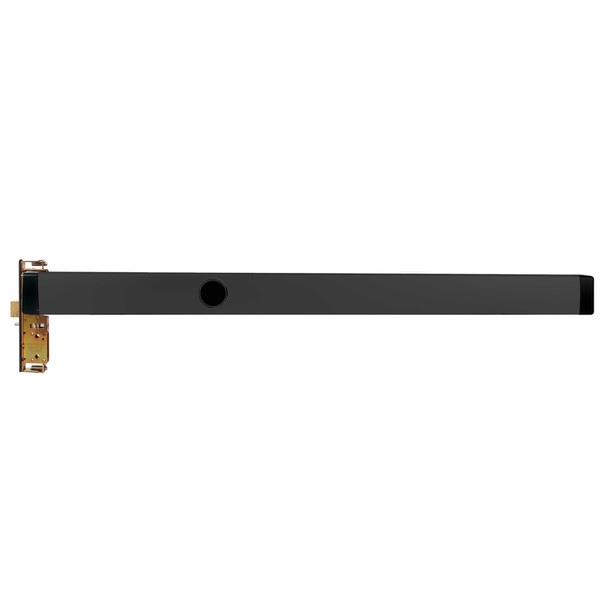

The Adams Rite 8430C-38336 is a mortise exit device designed for narrow stile aluminum doors up to 36 inches wide. Built for left-hand reverse (LHR) applications, this push bar exit solution features cylinder dogging and a durable extruded aluminum construction finished in black. Ideal for facilities requiring code-compliant emergency egress on standard door heights up to 8 feet.
This device fits 1-3/4" standard door thickness up to 2-1/4" and mounts into doors with minimum 3-3/4" stile width. The pushbar adjusts from 30" to 44" in height and retracts to 1-15/16" when dogged. Accepts standard rim cylinders and is compatible with optional entry trim kits (sold separately). As an authorized Adams Rite dealer, E.D. Locks provides expert installation guidance and access to certified products. Contact sales@edlocks.com or call 1-877-207-6067 for compatibility questions or to order cylinders and trim separately.
Specifications
- Brand: Adams Rite
- Model: 8430C-38336
- Type: Mortise Exit Device
- Backset: 1-1/8 inch
- Pushbar Length: 36 inches
- Handing: Left-Hand Reverse (LHR)
- Dogging: Cylinder Dogging
- Finish: Black
- Bar Height Adjustment: 30 inches to 44 inches
- Door Thickness: 1-3/4 inch standard, up to 2-1/4 inch
- Door Height Capacity: Up to 8 feet standard
- Stile Width Minimum: 3-3/4 inches
- Projection: 2-15/16 inch fully projected, 1-15/16 inch dogged
- Material: Extruded aluminum pushbar
- Cylinder Compatibility: Standard rim cylinders
- Warranty: Five year limited
