Description

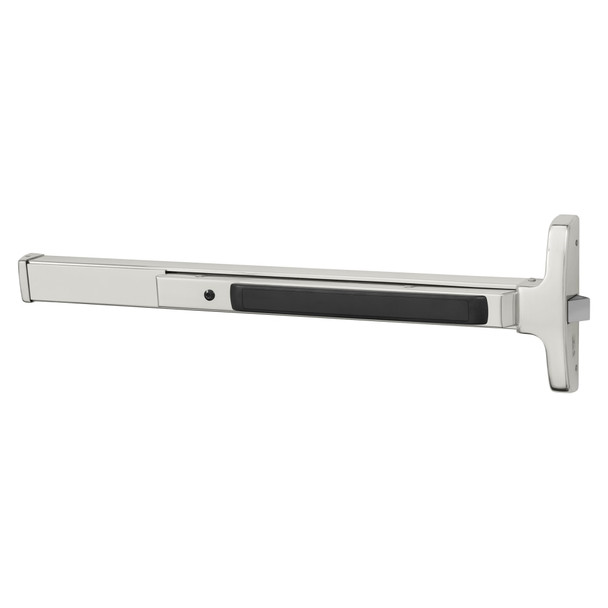

The Sargent 8504F 32 is a heavy-duty rim exit device built for facilities requiring Grade 1 security and reliability. Ideal for wood or metal doors 1 3/4" thick, this device features modular construction with minimal moving parts, delivering maintenance-free operation and exceptional durability that lasts the life of the building.
Compatible with 1 3/4" minimum stile doors and sized for 24"–32" door widths without cutting. The 80 Series exceeds ANSI/BHMA Grade 1 cycle and strength standards, with optional delayed egress, alarmed exit, and electric latch retraction features. Contact an authorized E.D. Locks specialist at sales@edlocks.com or 1-877-207-6067 for expert sizing, keying, and installation guidance.
Specifications
- Model: 8504F 32
- Series: Sargent 80
- Configuration: Rim
- Door Thickness: 1 3/4" (44mm)
- Rail Type: E Rail
- Door Width Range: 24" to 32" (61cm to 81cm)
- No cutting required for 32" doors
- Minimum Stile Width: 1 3/4" (44mm)
- Compatible Door Types: Wood or metal
- Standards: ANSI/BHMA Grade 1
