Description

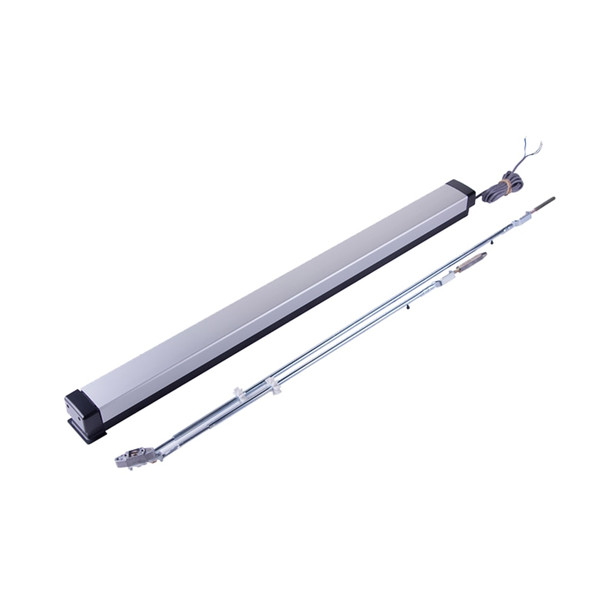

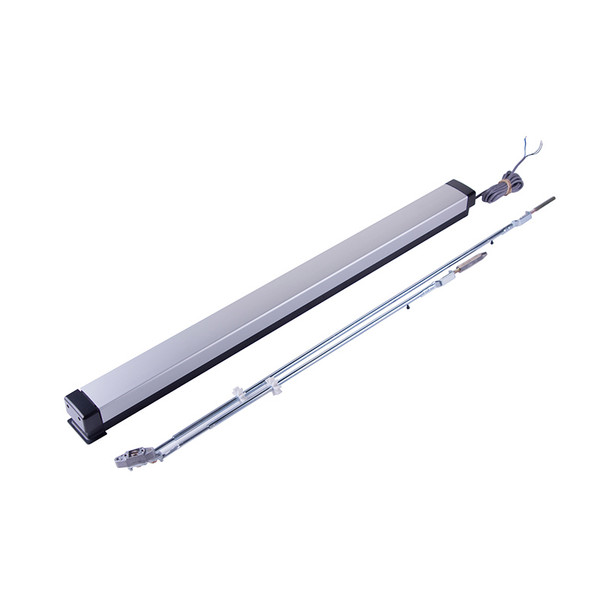

The Adams Rite 8611MLR-36 is a Grade 1 narrow stile exit device engineered for aluminum storefront and curtainwall applications. It features motor latch retraction and electric dogging, ideal for high-traffic commercial doors requiring ADA-compliant emergency egress and controlled access.
This 36-inch device fits standard 1-3/4" to 2-1/4" door thickness and doors up to 8 feet tall, with adjustable bar height from 30" to 44". The satin aluminum clear anodized finish resists corrosion. Non-handed design simplifies installation on either hinge. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for sizing, keying, and certified installation support from an authorized Adams Rite dealer.
Specifications
- Brand: Adams Rite
- Model: 8611MLR-36
- Grade: 1
- Pushbar Length: 36 inches
- Bar Height Adjustment: 30 to 44 inches
- Door Thickness: 1-3/4" to 2-1/4"
- Maximum Door Height: 8 feet (standard); 10 feet with optional Tall Door Kit
- Minimum Stile Width: 3-3/4"
- Projection: 2-15/16" fully projected, 1-15/16" dogged
- Finish: Satin Aluminum Clear Anodized
- Material: Extruded aluminum pushbar
- Handing: Non-handed, field reversible
- Features: Motor latch retraction, electric dogging, narrow stile concealed vertical rod
- Warranty: Five year limited
- Application: Aluminum doors and curtainwall
