Description

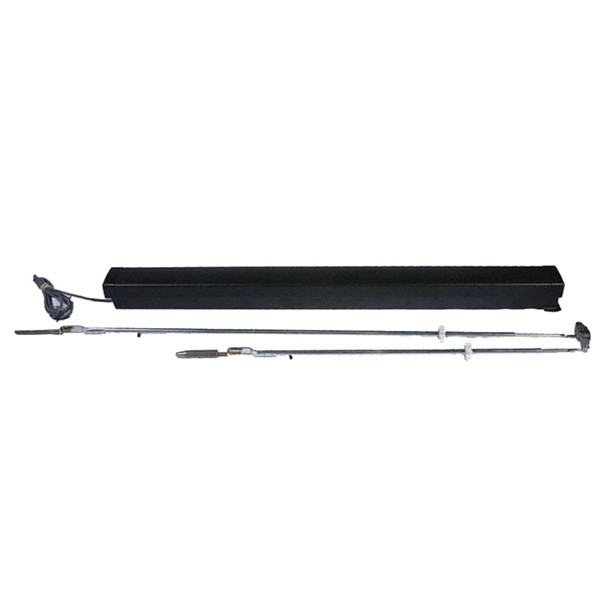

The Adams Rite 8633MLR-30 is a Grade 1 narrow stile concealed vertical rod exit device designed for aluminum storefront and curtainwall applications. It features motor latch retraction and electric dogging, making it ideal for high-traffic commercial doors requiring reliable emergency egress and convenient operator control.
This non-handed device fits standard 1-3/4" to 2-1/4" door thickness and door heights up to 8 feet with bar height adjustment from 30" to 44". The 30" pushbar is made of extruded aluminum in black anodized finish. For compatibility questions, custom configurations, or installation guidance, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert support.
Specifications
- Brand: Adams Rite
- Model: 8633MLR-30
- Type: Concealed Vertical Rod Exit Device
- Grade: 1
- Pushbar Length: 30 inch
- Finish: Black Anodized Aluminum
- Bar Height Range: 30 inch to 44 inch
- Door Thickness: 1-3/4 inch to 2-1/4 inch
- Maximum Door Height: 8 feet
- Minimum Stile Width: 3-3/4 inch
- Projection: 2-15/16 inch fully projected, 1-15/16 inch dogged
- Features: Motor Latch Retraction, Electric Dogging
- Handing: Non-handed
- Application: Aluminum narrowstile
- Warranty: Five year limited
