Description

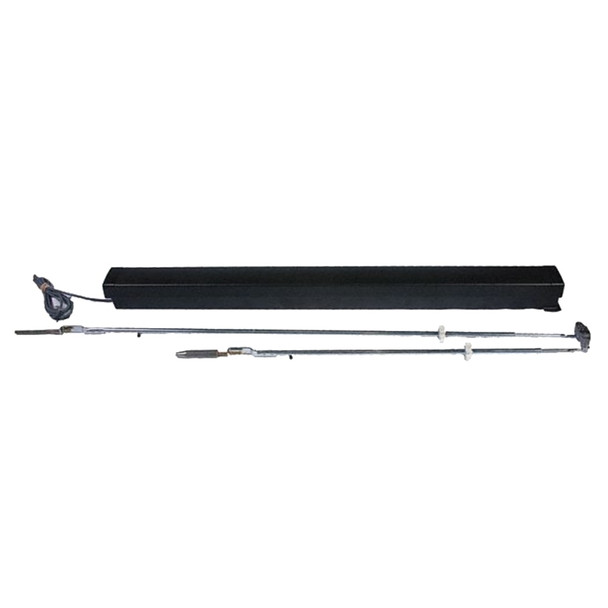

The Adams Rite 8633MLR-48 is a Grade 1 narrow stile concealed vertical rod exit device engineered for aluminum storefront and curtainwall applications. With motor latch retraction and electric dogging, this 48-inch pushbar meets ADA and fire code requirements for high-traffic commercial doors, retail environments, and secure facilities demanding reliable egress control.
Installation suits 1 3/4" to 2 1/4" door thickness on doors up to 8 feet tall with adjustable bar height from 30" to 44". The device is non-handed with field-reversible entry trim for flexible mounting. As an authorized Adams Rite dealer, E.D. Locks offers expert guidance on cylinder selection, dogging options, and compatibility. Contact sales@edlocks.com or call 1-877-207-6067 for technical support and fast shipping.
Specifications
- Brand: Adams Rite
- Model: 8633MLR-48
- Grade: 1
- Pushbar Length: 48 inches
- Finish: Black Anodized Aluminum
- Material: Extruded aluminum pushbar
- Handing: Non-handed
- Bar Height Adjustment: 30" to 44"
- Door Thickness: 1 3/4" to 2 1/4"
- Maximum Door Height: 8 feet (standard)
- Stile Width Minimum: 3 3/4"
- Projection: 2 15/16" fully projected, 1 15/16" when dogged
- Dogging: Electric (standard)
- Fasteners: Self-tapping screws included
- Warranty: 5-year limited
- Cylinder Compatibility: Standard Rim cylinder (ANSI/BHMA Function 03) or Mortise cylinder with MS cam (Functions 08, 09)
