Description

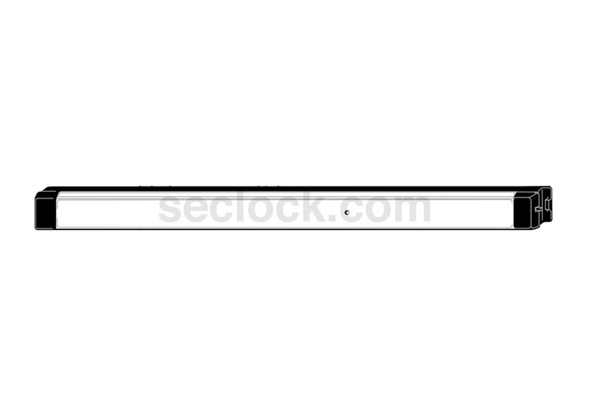

The Adams Rite 8701EL-48 is a 48-inch rim exit device designed for hollow metal or wood doors up to 8 feet tall. It features electric latch retraction powered by 24V and an extruded aluminum pushbar available in multiple finishes. Ideal for commercial buildings requiring reliable ADA-compliant egress with electronic control.
This non-handed device suits door thicknesses from 1-3/4" to 2-1/4" and accommodates standard rim cylinders for keyed entry. Installation is straightforward on doors with minimum 3-3/4" stile width. As an authorized Adams Rite dealer, E.D. Locks offers expert product selection and support at sales@edlocks.com or 1-877-207-6067 to ensure correct specification for your application.
Specifications
- Brand: Adams Rite
- Model: 8701EL-48-24
- Type: Electric Latch Retraction Rim Exit Device
- Pushbar Length: 48 inches
- Power: 24V
- Material: Extruded aluminum pushbar
- Handing: Non-handed (field reversible trim)
- Bar Height Adjustment: 30 inches to 44 inches
- Door Height Compatibility: Up to 8 feet (standard); up to 10 feet with Tall Door Kit
- Door Thickness: 1-3/4 inches standard, up to 2-1/4 inches
- Minimum Stile Width: 3-3/4 inches
- Projection: 2-15/16 inches (fully projected), 1-15/16 inches (dogged)
- Cylinder Compatibility: Standard rim cylinders
- Warranty: Five year limited
