Description

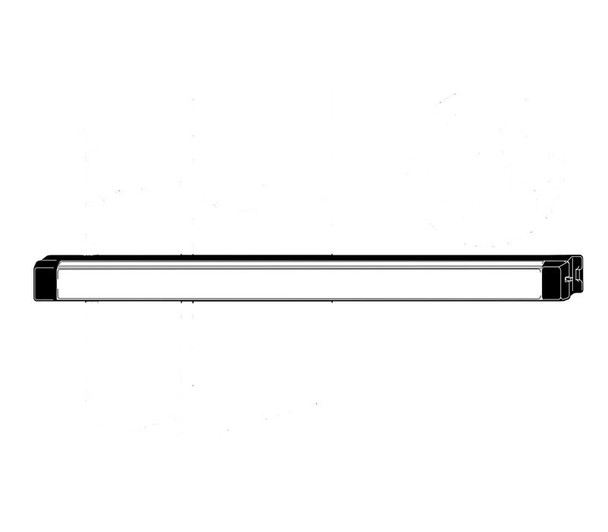

The Adams Rite 8702EL-48 is a rim exit device designed for hollow metal and wood doors up to 8 feet tall. This 48-inch electric latch retraction device operates on 24V power and features a non-handed design with field-reversible lever entry trim. It solves security and egress compliance needs for commercial facilities requiring controlled emergency exits.
Compatible with standard 1 3/4" to 2 1/4" door thickness and 3 3/4" minimum stile width, the device includes an extruded aluminum pushbar with dark bronze finish and hex key dogging. It fits doors up to 8 feet (tall door kits available separately). Contact an authorized E.D. Locks & Security dealer at sales@edlocks.com or 1-877-207-6067 for expert installation guidance and product support backed by our five-year limited warranty.
Specifications
- Brand: Adams Rite
- Model: 8702EL-48-24
- Pushbar Length: 48 inches
- Power: 24V electric latch retraction
- Finish: Dark bronze
- Handing: Non-handed, field reversible
- Door Compatibility: 1 3/4" to 2 1/4" thickness
- Minimum Stile Width: 3 3/4"
- Maximum Door Height: 8 feet (with bar at 40-44")
- Bar Height Adjustment: 30" to 44"
- Projection: 2 15/16" fully extended, 1 15/16" dogged
- Dogging: Standard hex key
- Material: Extruded aluminum pushbar
- Warranty: Five-year limited
