Description

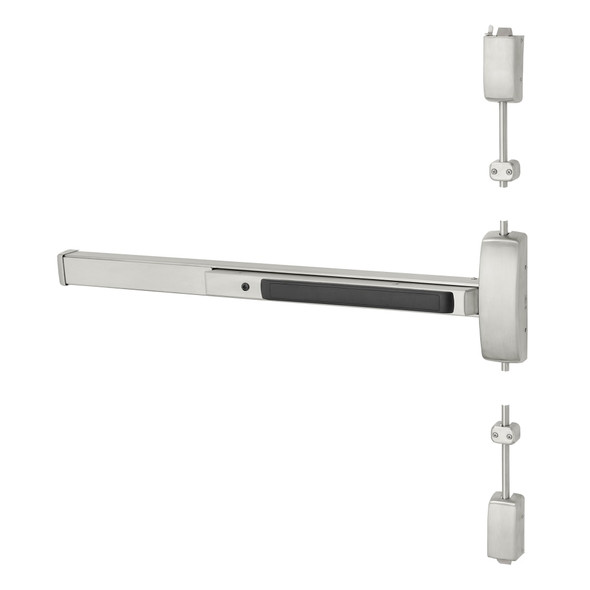

The Sargent 8706G is a heavy-duty rim exit device built for commercial and institutional facilities requiring Grade 1 security and reliability. Designed for wood or metal doors 1-3/4" thick, this left-hand reverse model exceeds ANSI/BHMA standards with modular construction, minimal moving parts, and maintenance-free operation that protects your building for decades.
This E Rail configuration fits doors 24" to 32" wide with no modifications needed for 32" doors. Sargent 80 Series devices support optional delayed egress, alarmed, and electric latch retraction upgrades for specialized applications. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for compatibility verification and expert installation guidance from an authorized dealer.
Specifications
- Brand: Sargent
- Model: 8706G ETL LHR 32D
- Configuration: Rim, Left-Hand Reverse
- Rail Type: E Rail
- Door Width Range: 24" to 32" (61cm to 81cm)
- Door Thickness: 1-3/4" (44mm)
- Minimum Stile: 4-1/2" (114mm) with trim; 3-1/2" (88mm) without trim
- Grade: ANSI/BHMA Grade 1
- Door Types: Wood or metal
