Description

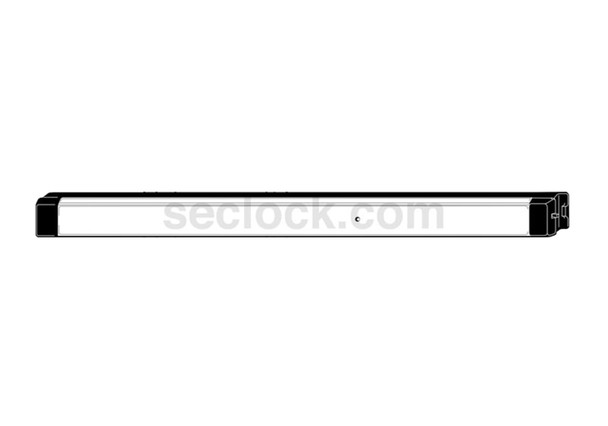

The Adams Rite 8802ELD-42 is a rim exit device designed for narrow stile aluminum doors up to 42 inches wide. It combines electric latch retraction with mechanical dogging, making it ideal for high-traffic commercial facilities, hospitals, and secured areas where controlled egress and emergency access are critical.
This 24V device fits standard 1-3/4" to 2-1/4" door thickness and adjusts from 30" to 44" bar height, accommodating doors up to 8 feet tall. The pushbar is extruded aluminum with field-reversible lever trim. For compatibility details, installation guidance, or to discuss keying options and tall door kits, contact our authorized dealer specialists at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Adams Rite
- Model: 8802ELD-42-24
- Device Type: Rim Exit Device with Electric Latch Retraction
- Voltage: 24V
- Dogging: Mechanical with hex key (cylinder dogging optional for 8100 Series)
- Finish: Dark Bronze
- Pushbar Length: 42" (field cuttable to smaller widths)
- Bar Height Adjustment: 30" to 44"
- Door Thickness: 1-3/4" standard, up to 2-1/4"
- Maximum Door Height: 8 feet at 40-44" bar height (Tall Door Kit available separately)
- Minimum Stile Width: 3-3/4"
- Projection: 2-15/16" fully projected, 1-15/16" dogged
- Handing: Non-handed, field reversible
- Material: Extruded aluminum pushbar, anodized
- Fasteners: Self-tapping screws (Sex Bolt Kits available separately)
- Cylinder Compatibility: Standard rim cylinder (ANSI/BHMA Function 03); mortise cylinder with MS cam for 3080 Entry Trim
- Warranty: Five year limited
