Description

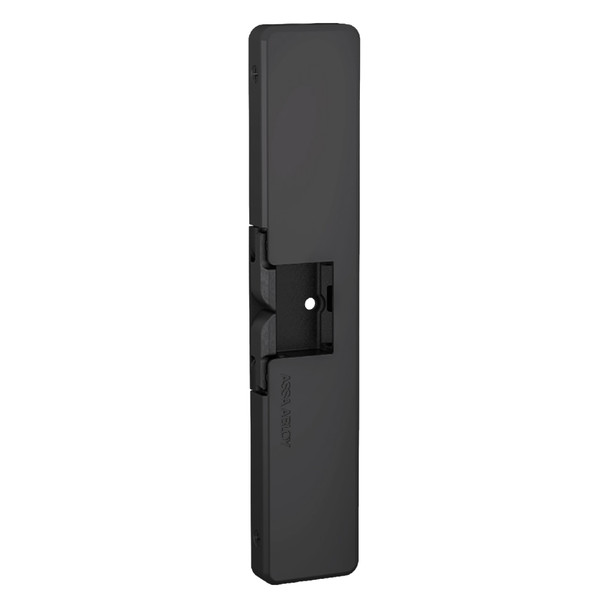

The HES 9400-BSP is a slim-line, surface-mounted electric strike engineered for rim exit devices with 1/2" Pullman latches. Its fully encased stainless steel housing eliminates the need for frame cutting, making installation straightforward on metal or wood frames. Ideal for facilities requiring secure access control without structural modifications.
This strike installs horizontally and is non-handed, offering field-selectable fail-safe or fail-secure operation at 12 or 24 VDC. It supports optional latchbolt monitoring and is backed by a five-year limited warranty. As an authorized HES dealer, E.D. Locks provides expert installation guidance and accessory recommendations. Contact sales@edlocks.com or call 1-877-207-6067 for compatibility questions or to discuss your project needs.
Specifications
- Frame Application: Metal and wood
- Electrical: 0.45 Amps at 12VDC continuous duty; 0.25 Amps at 24VDC continuous duty
- Static Strength: 1,500 lbs.
- Dynamic Strength: 70 ft-lbs.
- Endurance: 500,000 cycles
- Housing: 1/2" thick stainless steel
- Latch Accommodation: Up to 1/2" Pullman latch
- Adjustment: Horizontal
- Handed: Non-handed
- Solenoid: Internally mounted
- Selectable: Fail safe/fail secure
- Voltage: Dual 12 or 24 VDC
- Included: 1/8" + 1/16" spacer plate
- Available Finishes: 630 (Satin stainless steel), 605 (Bright brass), 606 (Satin brass), 612 (Satin bronze), 613 (Bronze toned), 613E (Dark oxidized satin bronze), 629 (Bright stainless steel)
- Optional Features: LBM (Latchbolt monitor), LBSM (Latchbolt strike monitor)
- Warranty: Five-year limited
