Description

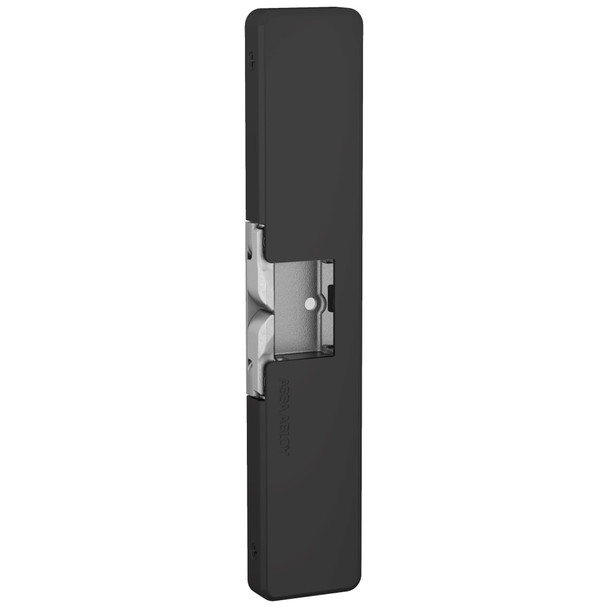

The HES 9400-BSP-LBM is a heavy-duty electric strike for metal and wood door frames, ideal for commercial access control systems. This fail safe/fail secure unit solves security challenges by providing reliable latch release under power with manual backup, serving installers and facility managers who need field-selectable operation modes.
Compatible with standard Pullman latches up to 1/2" thickness, the 9400-BSP-LBM installs completely surface-mounted with included spacer plates for frame adjustment. As an authorized HES dealer, E.D. Locks offers expert configuration guidance and support at sales@edlocks.com or 1-877-207-6067 to ensure proper keying and dual-voltage (12/24VDC) setup for your application.
Specifications
- Fail Safe/Fail Secure selectable
- Dual voltage: 12VDC or 24VDC
- Power consumption: 0.45A at 12VDC, 0.25A at 24VDC continuous duty
- Static strength: 1,500 lbs
- Dynamic strength: 70 ft-lbs
- Endurance: 500,000 cycles
- Frame applications: Metal and wood
- Surface mounted design
- Latchbolt monitor (LBM) included
- Horizontal adjustment, non-handed
- Black suede powder coat finish
- Includes 1/8" and 1/16" spacer plates
- Five-year limited warranty
