Description

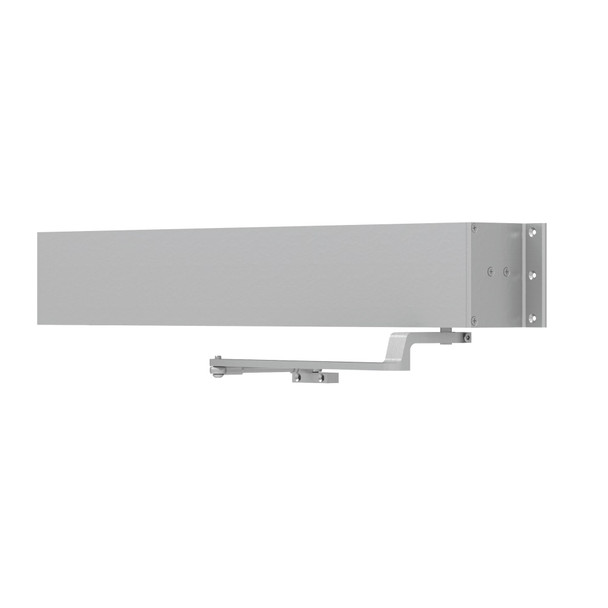

The LCN 9542-LONG is a Grade 1 ADA-compliant automatic door operator designed for wheelchair accessibility and general pedestrian traffic. This two-in-one swing door operator opens doors automatically when activated, while allowing manual operation for routine use. Ideal for hospitals, clinics, offices, and public facilities requiring reliable hands-free access.
Compatible with single doors 33 to 48 inches wide, this right-hand model features surface-mount installation with offset pivot and butt hinge configuration. Built to Grade 1 ANSI A156.19 standards and UL-listed, it resists corrosion and weather damage. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on installation, keying, and finish selection to ensure full compliance with your project requirements.
Specifications
- Brand: LCN
- Model: 9542-LONG 36 RH
- Type: ADA Automatic Door Operator
- Grade: 1 (ANSI A156.19)
- Single Door Width: 33 inch minimum to 48 inch maximum
- Combined Width: 33 inch to 48 inch
- Hand: Right Hand (RH)
- Mount: Surface Mount, Offset Pivot
- Hinge Configuration: Butt Hinge, Push Side
- Arm: Regular Arm (3077)
- Finish: 628 Aluminum Anodized / 710 Dark Brown Anodized
- Standards: ANSI A156.19, UL325/228, UL1998, ADA Compliant
- Corrosion Resistance: 100 Hour Salt Spray
- Buy American Act: Compliant (BAA)
- Installation: Machine Screws (MS)
- Warranty: 2 Years
