Description

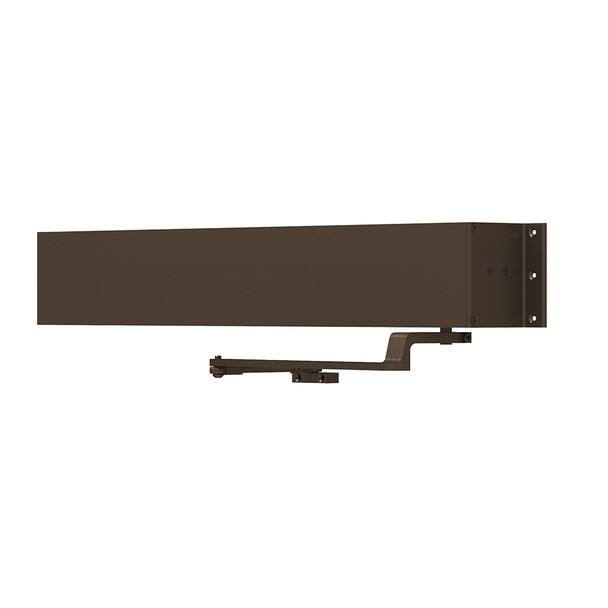

The LCN 9542-REG is a Grade 1 ADA-compliant automatic door operator designed for facilities requiring accessible entry. This two-in-one swing operator opens doors automatically for wheelchair users while allowing manual operation for standard pedestrian traffic, making it ideal for commercial buildings, hospitals, and public spaces.
Compatible with single doors 33" to 48" wide, the 9542-REG installs via surface-mount offset pivot on butt hinges. As an authorized LCN dealer, E.D. Locks provides expert sizing, finish selection, and installation support. Contact our team at sales@edlocks.com or 1-877-207-6067 for compatibility verification and technical guidance.
Specifications
- Brand: LCN
- Model: 9542-REG 36 LH ANDKB
- Grade: 1 - ANSI A156.19
- Certifications: UL325/228, UL1998, ADA, BAA compliant
- Door Width: 33" minimum to 48" maximum per leaf
- Mounting: Surface mount, offset pivot on butt hinge
- Arm Type: Regular Arm (3077)
- Finish: 710 Dark Brown, Anodized
- Corrosion Rating: 100 Hour Salt Spray
- Warranty: 2 years
- Hardware: Machine screws (MS)
