Description

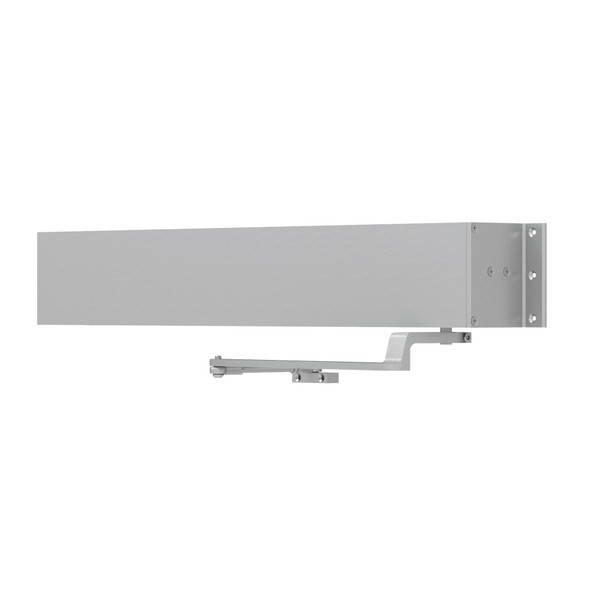

The LCN 9542-REG 44 is a Grade 1 ADA-compliant automatic door operator designed for facilities requiring wheelchair accessibility. This two-in-one swing operator opens doors automatically when activated while allowing manual operation for regular pedestrian traffic, solving accessibility compliance challenges for commercial buildings, healthcare facilities, and public spaces.
Compatible with single doors 33" to 48" wide, surface-mounted offset pivot installation. Choose from 628 Aluminum Anodized or 710 Dark Brown Anodized finish. Meets ANSI A156.19, UL325/228, UL1998 standards and includes a 2-year warranty. Contact our authorized dealer specialists at sales@edlocks.com or 1-877-207-6067 for installation guidance and expert support.
Specifications
- Brand: LCN
- Model: 9542-REG 44 LH
- Type: ADA Automatic Door Operator
- Grade: Grade 1
- Door Width: 33" minimum to 48" maximum per leaf
- Installation: Surface mount, offset pivot, single door
- Arm Type: Regular Arm (3077)
- Finishes: 628 Aluminum Anodized, 710 Dark Brown Anodized
- Standards: ANSI A156.19, UL325/228, UL1998, ADA, BAA (Buy American Act)
- Salt Spray Rating: 100 Hour
- Warranty: 2 years
- Mounting: Machine Screws (MS), Butt hinge push side
