Description

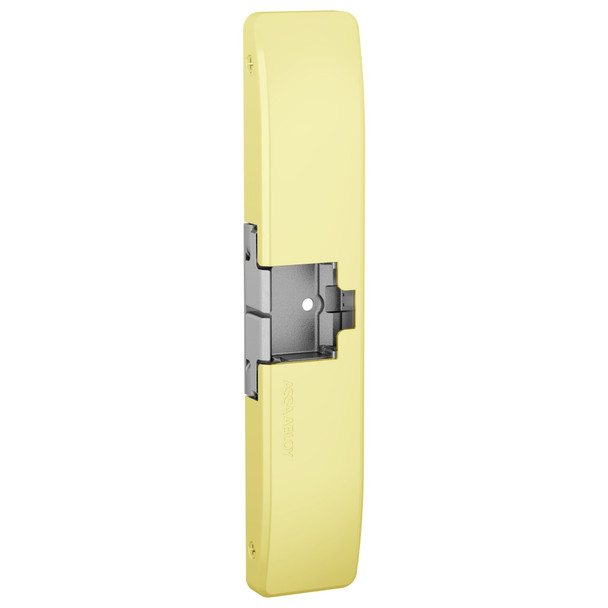

The HES 9700-605-LBM is a heavy-duty surface-mounted electric strike engineered for Corbin Russwin SecureBolt and Yale SquareBolt exit devices. Its 3/4-inch stainless steel housing eliminates the need for frame cutting during installation, making it ideal for retrofits and new construction where minimal structural modification is required.
Field-selectable for fail-secure or fail-safe operation at 12 or 24VDC, this strike meets UL 1034 burglary resistance, UL 10C 3-hour fire rating, ANSI/BHMA Grade 1, and is Florida Building Code approved and California Fire Marshal listed. For compatibility verification and expert installation guidance, contact E.D. Locks at sales@edlocks.com or 1-877-207-6067.
Specifications
- Series: 9700
- Model: 9700-605-LBM
- Brand: HES
- Housing: 3/4 inch stainless steel
- Voltage: 12 or 24VDC (field selectable)
- Operation: Fail-secure or fail-safe (field selectable)
- Compatible with: Corbin Russwin SecureBolt and Yale SquareBolt exit devices
- UL Listed: ANSI 250.13, NFPA-252, ASTM-E152, UL 1034, UL 10C (3 hour, fail secure only), UL 294 (6th Edition)
- Fire Rating: UL 10C 3-hour (fail secure only)
- Grade: ANSI/BHMA A156.31 Grade 1
- Certifications: Florida Building Code approved (FL#14307), California Fire Marshal listed, CAN4-S104 (ULC-S104), RoHS compliant
- Patents: 6,390,520, 6,392,520, 8,454,520
