Description

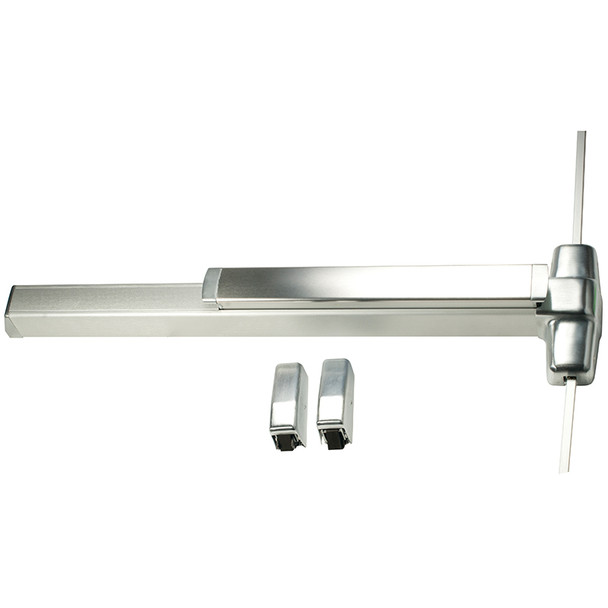

The Von Duprin 9827EO-F is a fire-rated surface-mounted vertical rod exit device designed for pairs of doors up to 8' x 10'. Built to ANSI A156.3:2008 Grade 1 standards and UL-listed for fire exits, this heavy-duty device features a smooth mechanism case and non-handed installation (except with signal switch options). Ideal for healthcare facilities, commercial buildings, and high-traffic environments.
This 26D satin chrome finish device installs on hollow metal or tin-clad composite fire doors. Optional vertical rod and latch guards protect the bottom rod from cart and gurney impacts. For proper sizing, keying, and installation guidance specific to your door configuration, contact our authorized dealer team at sales@edlocks.com or call 1-877-207-6067 for expert support.
Specifications
- Model: 9827EO-F
- Device Type: Surface-mounted vertical rod exit device
- Door Capacity: Pairs up to 8' x 10' (2438mm x 3048mm)
- Standard: ANSI A156.3:2008 Grade 1
- UL Listed: Fire exit hardware
- Finish: US26D (Satin Chrome)
- Case Style: Smooth mechanism
- Handed: Non-handed (except with signal switch option)
- Compatible Doors: Hollow metal, tin-clad composite fire doors
