Description

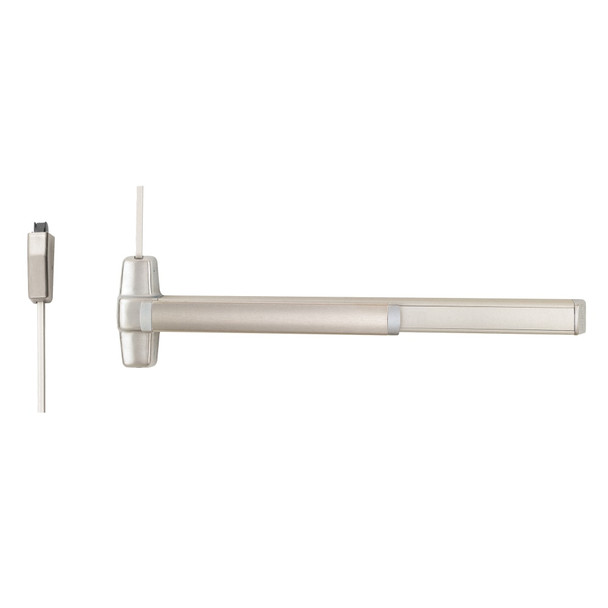

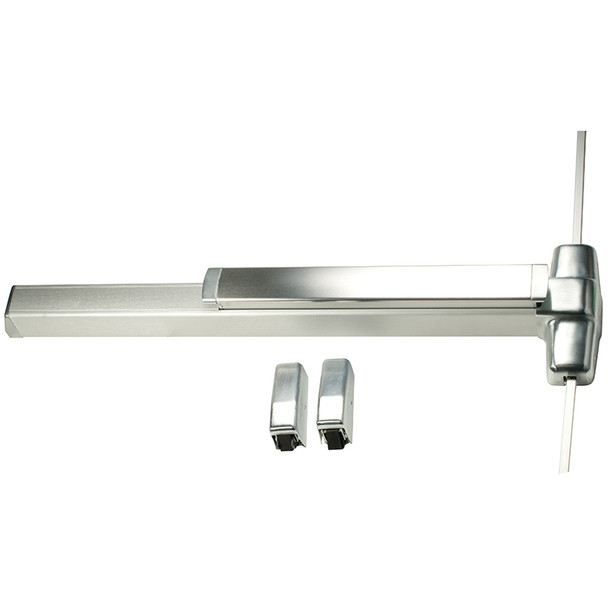

The Von Duprin 9827EO-F is a fire-rated exit device designed for surface-mounted installation on pairs of doors up to 8 feet by 10 feet. Built to ANSI A156.3 Grade 1 standards and UL listed for fire exits, this vertical rod device provides reliable emergency egress for commercial buildings, hospitals, schools, and other high-traffic facilities where code-compliant panic hardware is essential.
This model features a smooth mechanism case and is non-handed unless a signal switch option is selected. Compatible with hollow metal and tin-clad composite fire doors, optional vertical rod and latch guards protect against cart and gurney impacts. The 32D satin stainless finish resists corrosion in demanding environments. For sizing, compatibility, and professional installation guidance, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Maximum door size: 8 feet x 10 feet (2438mm x 3048mm)
- Standard: ANSI A156.3:2008 Grade 1
- UL listed for fire exit hardware
- Configuration: Pairs of doors
- Finish: 32D (satin stainless)
- Case style: Smooth mechanism
- Handed: Non-handed (except with signal switch option)
- Compatible door types: Hollow metal, tin-clad composite fire doors
- Optional accessories: Vertical rod guards, latch guards
