Description

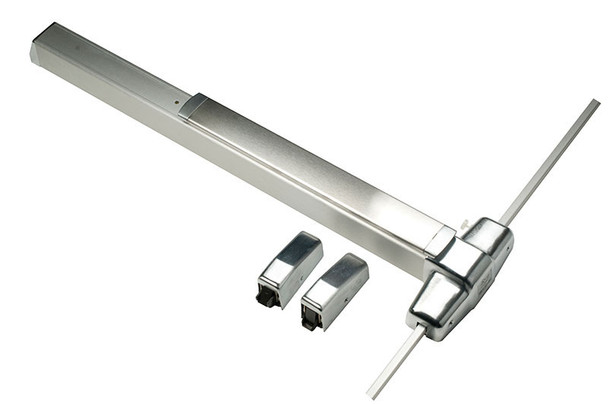

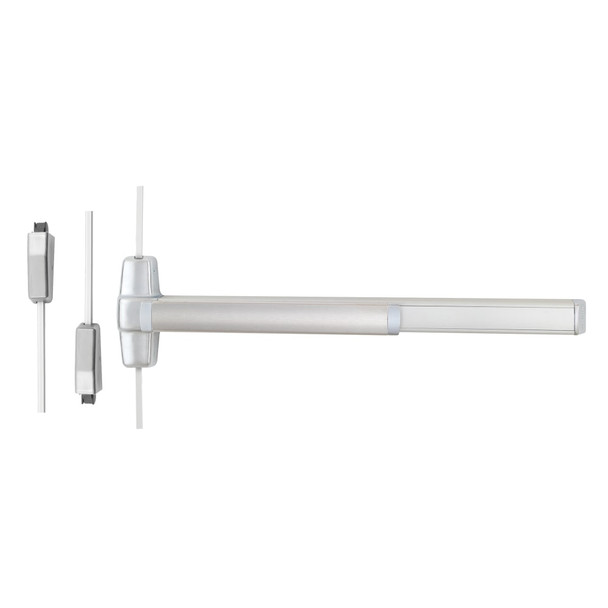

The Von Duprin 9827L-01-F is a UL-listed fire exit surface-mounted vertical rod device designed for pairs of doors up to 8 feet by 10 feet. Built to ANSI A156.3 2008 Grade 1 standards, it features a smooth mechanism case and is ideal for facilities requiring reliable emergency egress hardware that meets fire safety codes.
This left-hand reverse (LHR) model comes in 26D satin chrome finish and is compatible with hollow metal and tin clad composite fire doors. Optional vertical rod and latch guards protect the bottom rod from cart or gurney impacts. For expert assistance selecting the right configuration or scheduling installation, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Model: 9827L-01-F
- Finish: US26D (Satin Chrome)
- Handedness: LHR (Left-Hand Reverse)
- Door Size Capacity: Up to 8' x 10' (2438mm x 3048mm)
- Application: Pairs of doors
- Standard: ANSI A156.3 2008 Grade 1, UL Listed
- Case Type: Smooth mechanism case
- Compatible Doors: Hollow metal, tin clad composite fire doors
- Available Options: Vertical rod and latch guards, signal switch
