Description

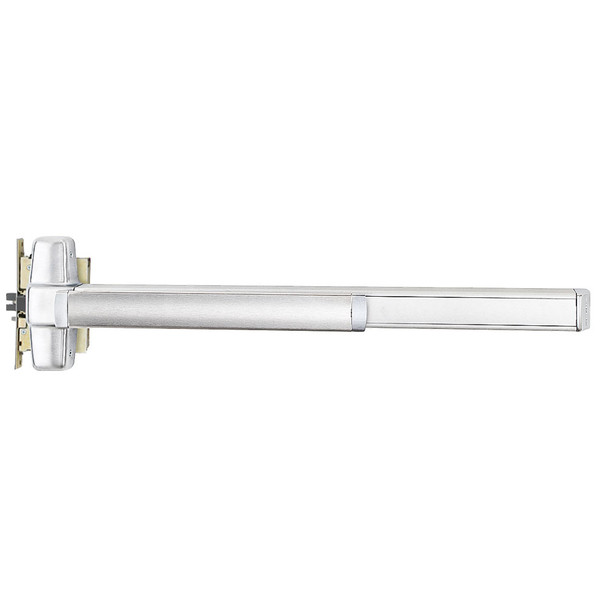

The Von Duprin 9875L-03-F is a Grade 1 mortise exit device designed for single doors up to 4' x 10'. Built for fire-rated applications, it features a smooth mechanism case, 3/4-inch anti-friction latch bolt, and non-handed auxiliary deadbolt. Fits door stiles as narrow as 4 3/4 inches, ideal for retrofit and new construction projects requiring ANSI A156.3 compliance.
This left-hand reverse (LHR) unit in satin stainless finish (32D) installs in standard mortise preparations. The field-reversible latch bolt simplifies installation without removing the lock. As an authorized Von Duprin dealer, E.D. Locks provides expert configuration guidance and fast shipping. Contact sales@edlocks.com or call 1-877-207-6067 for keying options and compatibility questions.
Specifications
- Brand: Von Duprin
- Model: 9875L-03-F
- Grade: ANSI A156.3 2008 Grade 1
- Handing: Left-Hand Reverse (LHR)
- Finish: US32D (Satin Stainless)
- Latch Bolt: 3/4 inch anti-friction, field reversible
- Door Size: Up to 4' x 10'
- Minimum Stile Width: 4 3/4 inches
- Application: Fire-rated mortise lock device
