Description

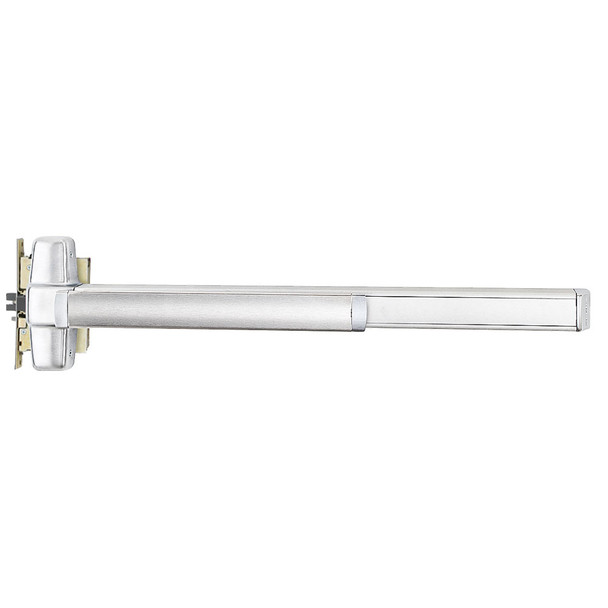

The Von Duprin 9875L-07-F is a Grade 1 mortise fire exit device designed for single doors up to 4' x 10'. Built for facilities managers, building owners, and security professionals, it provides reliable emergency egress and meets strict ANSI A156.3-2008 standards. The smooth mechanism case fits door stiles as narrow as 4 3/4", making it ideal for retrofit and new construction applications.
This left-hand reverse (LHR) model features a 3/4" anti-friction latch bolt, field-reversible without lock removal, plus a non-handed auxiliary deadbolt. Compatible with standard mortise preparations on most commercial doors. Finish: US 32D. For expert sizing, keying options, and installation guidance, contact E.D. Locks at sales@edlocks.com or 1-877-207-6067, your authorized Von Duprin dealer.
Specifications
- Brand: Von Duprin
- Model: 9875L-07-F 3 32D LHR
- Grade: ANSI A156.3-2008 Grade 1
- Max Door Size: 4' x 10' (1219mm x hardware)
- Min Stile Width: 4 3/4" (121mm)
- Latch Bolt: 3/4" (19mm) anti-friction, field reversible
- Auxiliary Bolt: Non-handed deadbolt
- Finish: US 32D
- Handing: Left-Hand Reverse
- Case Type: Smooth mechanism
