Description

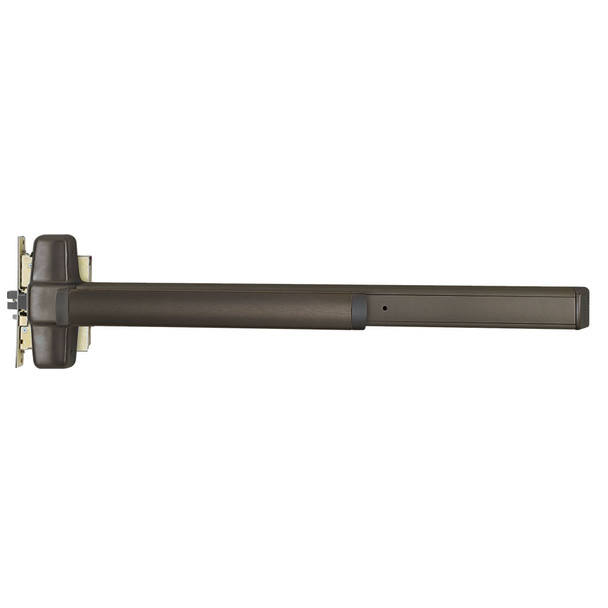

The Von Duprin 9875L-06 is a UL-listed mortise panic exit device designed for single and double doors in commercial buildings. Grade 1 certified to ANSI A156.3-2008, it solves the need for reliable emergency egress hardware on hollow metal doors with 86 cutouts and stiles as narrow as 4 3/4 inches.
This right-hand reverse (RHR) model features a 3/4-inch anti-friction latch bolt that is field reversible without lock removal, plus a non-handed auxiliary deadlocking bolt. Compatible with stock hollow metal doors, it installs in standard mortise preparations. As an authorized Von Duprin dealer, E.D. Locks provides expert technical support and sizing guidance at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Von Duprin
- Model: 9875L-06
- Certification: UL Listed, ANSI A156.3-2008 Grade 1
- Hand: Right-Hand Reverse (RHR)
- Latch Bolt: 3/4 inch (19mm), anti-friction, field reversible
- Auxiliary Bolt: Non-handed, deadlocking
- Door Compatibility: Hollow metal doors with 86 cutout, stile width 4 3/4 inches minimum
- Finish: 313 (Satin Stainless Steel)
- Case Style: Smooth mechanism case
