Description

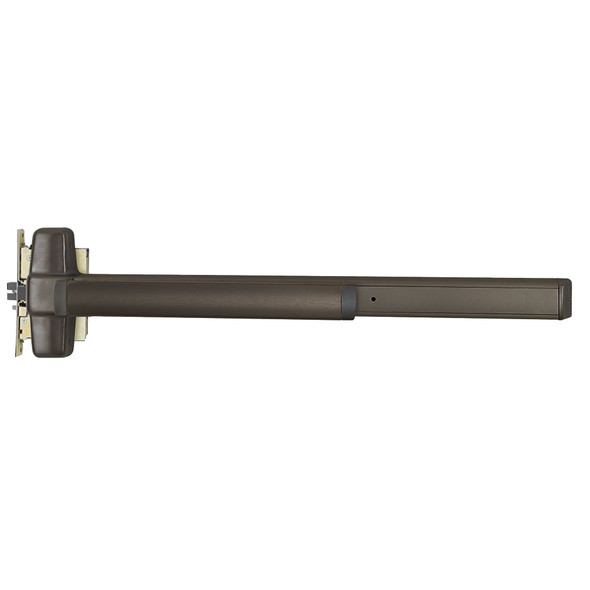

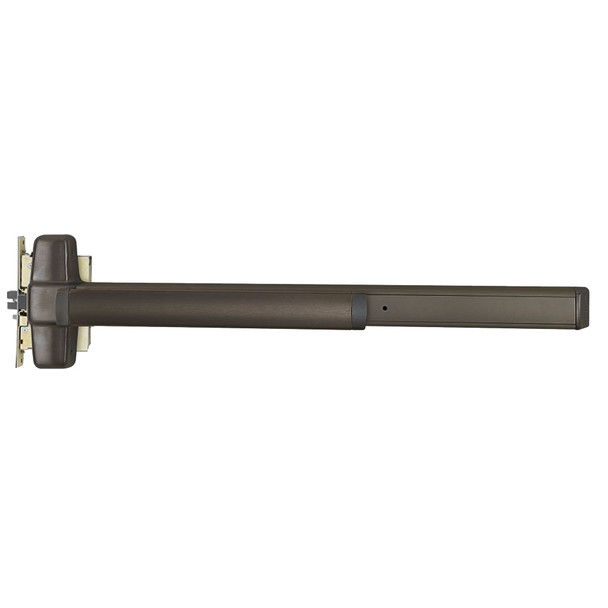

The Von Duprin 9875L-06 is a Grade 1 mortise panic exit device designed for single and double doors in commercial buildings. UL listed and ANSI A156.3-2008 compliant, it solves the critical need for reliable, code-compliant emergency egress on hollow metal doors with 86 cutouts and stiles as narrow as 4 3/4 inches.
This right-hand reverse (RHR) model features a 3/4-inch anti-friction latch bolt that is field-reversible without lock removal, plus a non-handed deadlocking auxiliary bolt. Compatible with stock hollow metal door frames, it ships in finish 313. For expert guidance on installation, keying, or finish options, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Grade: ANSI A156.3-2008 Grade 1
- Device Type: Mortise Panic Exit Hardware
- Latch Bolt: 3/4 inch (19mm) anti-friction, field reversible
- Minimum Door Stile Width: 4 3/4 inches (121mm)
- Door Cutout: 86
- Finish: 313
- Handed: Right-Hand Reverse (RHR)
- UL Listed: Yes
