Description

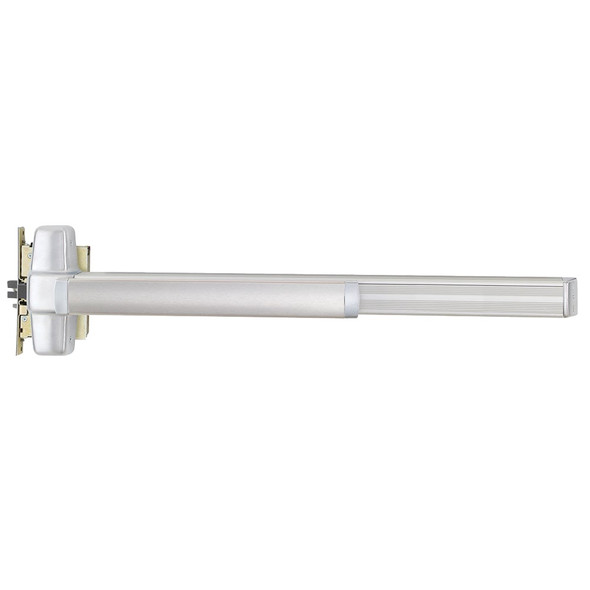

The Von Duprin 9975L-06 is a Grade 1 mortise panic exit device designed for single and double doors in commercial buildings. This UL-listed hardware meets ANSI A156.3 2008 standards and features a grooved case mechanism, 3/4" anti-friction latch bolt, and field-reversible design. It solves the critical need for reliable, code-compliant emergency egress on high-traffic doors.
This right-hand reverse (RHR) model in satin stainless finish (US4) fits standard hollow metal doors with 86 cutout and stiles as narrow as 4 3/4". The non-handed auxiliary deadbolt and adjustable bevel faceplate ensure smooth operation. As an authorized Von Duprin dealer, E.D. Locks provides expert guidance on installation and keying. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for compatibility questions or to discuss your project requirements.
Specifications
- Brand: Von Duprin
- Model: 9975L-06 3
- Grade: ANSI A156.3 2008 Grade 1
- UL Listed: Panic exit hardware
- Finish: US4 (Satin Stainless Steel)
- Orientation: RHR (Right Hand Reverse)
- Latch Bolt: 3/4" (19mm) anti-friction, field reversible
- Door Fit: Hollow metal doors with 86 cutout, stiles 4 3/4" or wider
- Case Style: Grooved mechanism case
