Description

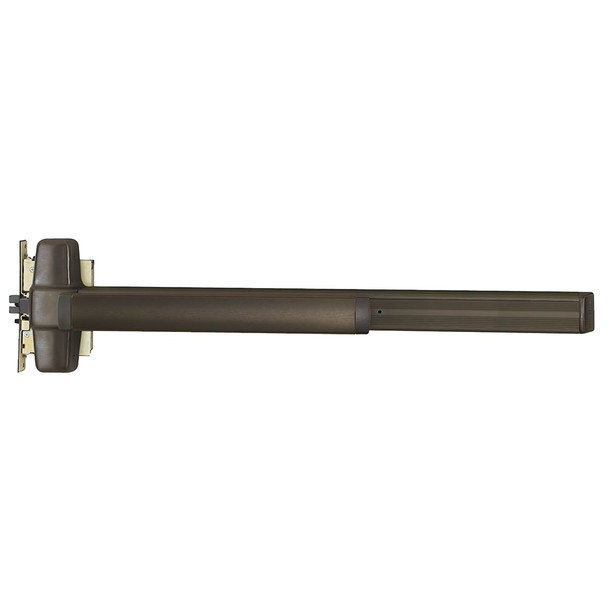

The Von Duprin 9975L-06 is a UL-listed mortise panic exit device designed for single and double doors in commercial and institutional settings. It meets ANSI A156.3 2008 Grade 1 standards and solves the critical need for reliable, code-compliant emergency egress on high-traffic entry and exit doors.
This right-hand reverse (RHR) model fits standard hollow metal doors with 86 cutout and door stiles 4 3/4 inches or wider. The 3/4-inch anti-friction latch bolt is field-reversible and deadlocks automatically. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for compatibility verification, finish selection, and expert installation guidance from an authorized Von Duprin dealer.
Specifications
- Model: 9975L-06 3 313 RHR
- Type: Mortise panic exit device
- Standard: ANSI A156.3 2008 Grade 1, UL listed
- Latch bolt: 3/4 inch anti-friction, field reversible
- Door cutout: 86
- Minimum door stile width: 4 3/4 inches (121 mm)
- Case style: Grooved (9975 series)
- Auxiliary bolt: Non-handed deadlocking
- Finish: 313 (Satin Stainless Steel)
- Handing: Right-hand reverse
