Description

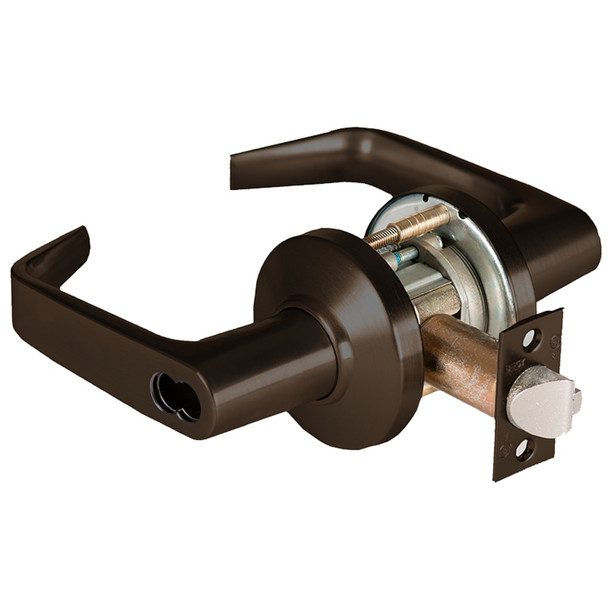

The BEST 9K is a heavy-duty Grade 1 cylindrical lock engineered for demanding commercial and institutional applications. Built to withstand over 4 million cycles, it delivers superior security and reliability with minimal maintenance. Its low-maintenance design protects critical components from daily wear and abuse, reducing long-term ownership costs.
This lock supports both standard 6-pin non-IC cylinders and SFIC options with multiple keyway choices (Schlage, Corbin-Russwin, Medeco, Sargent, Yale). Pre-assembled hub design speeds installation to just 5 steps, and the interchangeable core enables quick rekeying and customized masterkeying. Contact an E.D. Locks authorized dealer at sales@edlocks.com or 1-877-207-6067 for expert specification guidance and security recommendations.
Specifications
- Grade: 1
- Latch: solid stainless steel 9/16 inch throw; front 2 1/4 inch and 1 1/8 inch beveled
- Lever handles: plated zinc alloy
- Trim: brass or bronze
- Strike: ANSI 2 3/4 inch standard; ANSI S3 4 7/8 inch, ANSI S3 7/8 inch flat, and 7/8 inch flat strike available
- Chassis: zinc alloy and corrosion-treated steel; 2 1/16 inch diameter
- Door thickness: 1 3/4 inch or 2 1/4 inch; spacers available for 1 3/8 inch
- Door prep: 2 1/8 inch diameter cross bore
- Backset: 2 3/4 inch standard; 3 1/2 inch and 5 inch available
- Keying: 6-pin non-IC brass cylinder or 6- or 7-pin SFIC option
- Keyway options: LFIC (Schlage), Non-IC (Corbin-Russwin, Medeco, Sargent, Schlage, Yale)
- Cycle tested: over 4 million cycles, exceeds Grade 1 standards
