Description

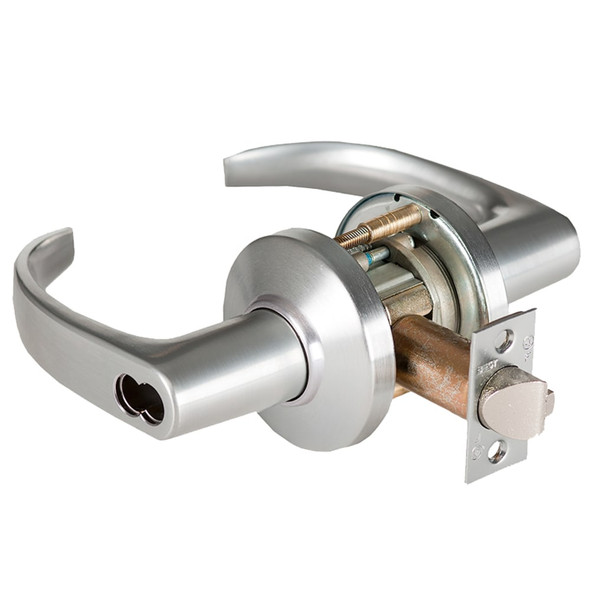

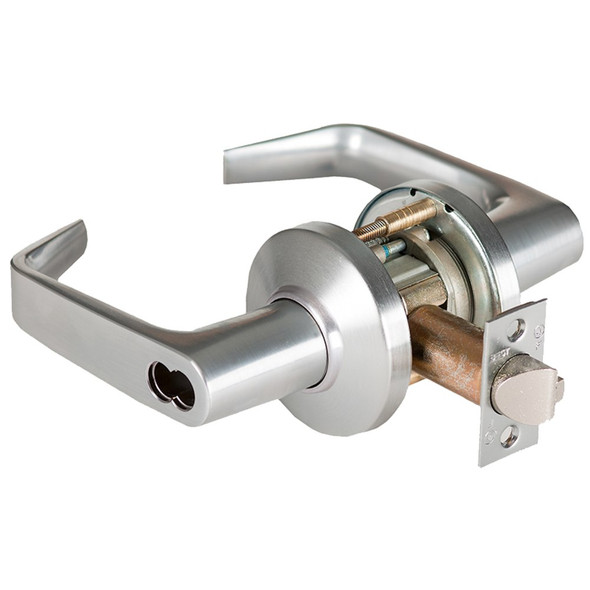

The BEST 9K37 is a Grade 1 cylindrical lock engineered for high-traffic commercial and institutional doors. Its durable die-cast construction and stainless steel latch withstand over 4 million cycles, solving the durability and maintenance challenges that plague standard locks in demanding environments.
This lock fits standard 2 1/8" cross-bore prep on 1 3/4" or 2 1/4" doors, with 2 3/4" backset and ANSI strike options. The 6-pin non-IC brass cylinder is keyed to your specifications; SFIC and multiple keyway options (Schlage, Sargent, Yale, Medeco, Corbin-Russwin) are available. Contact our security experts at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, masterkeying, and interchangeable core solutions.
Specifications
- Grade: 1 (ANSI)
- Latch: Solid stainless steel, 9/16" throw
- Front dimensions: 2 1/4" and 1 1/8" beveled
- Lever handles: Plated zinc alloy
- Trim finish: Satin Chrome (626)
- Chassis: Zinc alloy and corrosion-treated steel, 2 1/16" diameter
- Door thickness: 1 3/4" or 2 1/4" (spacers available for 1 3/8")
- Door prep: 2 1/8" diameter cross bore
- Backset: 2 3/4" standard (3 1/4" and 5" available)
- Strike: ANSI 2 3/4" standard (ANSI S3 4 7/8", 7/8" flat, ANSI S3 7/8" flat available)
- Cylinder: 6-pin non-IC brass (6-pin or 7-pin SFIC optional)
- Keyway options: SCHRC-Schlage, COR-Corbin-Russwin, MED-Medeco, SAR-Sargent, SCH-Schlage, YAL-Yale
- Cycle rating: 4+ million cycles
