Description

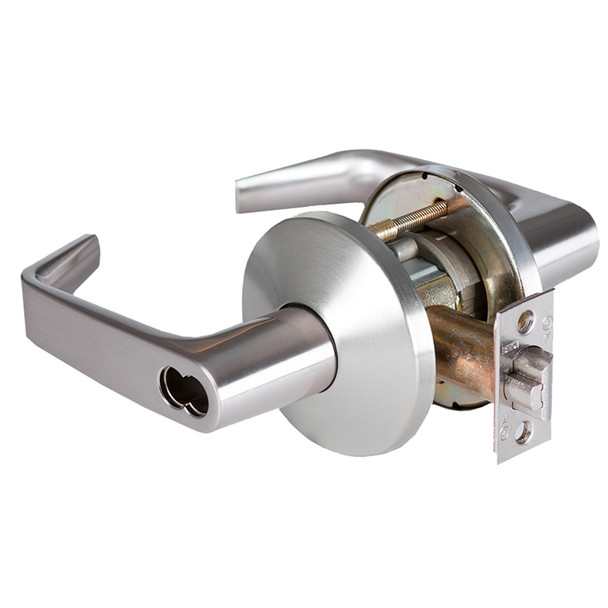

The BEST 9K47W15LS is a Grade 1 cylindrical lock engineered for high-traffic commercial and institutional doors. Built for durability and low maintenance, it solves the problem of lock wear and costly repairs by delivering proven security with superior component protection against daily abuse.
This lock accommodates 1 3/4" and 2 1/4" door thicknesses with a standard 2 3/4" backset and 2 1/8" cross bore. The interchangeable core design enables quick rekeying and customized masterkeying. As an authorized BEST dealer, E.D. Locks provides expert guidance on installation, keying options, and compatibility. Contact sales@edlocks.com or call 1-877-207-6067 for personalized assistance.
Specifications
- Grade: 1
- Latch: Solid stainless steel, 9/16" throw; front 2 1/4" and 1 1/8" beveled
- Lever handles: Plated zinc alloy
- Trim: Satin chrome
- Strike: ANSI 2 3/4" standard; ANSI S3 4 7/8", ANSI S3 7/8" flat, and 7/8" flat strike available
- Chassis: Zinc alloy and corrosion-treated steel; 2 1/16" diameter
- Door thickness: 1 3/4" or 2 1/4"; spacers available for 1 3/8"
- Door prep: 2 1/8" diameter cross bore
- Backset: 2 3/4" standard; 3 1/2" and 5" available
- Keying: 6-pin non-IC brass cylinder; 6- or 7-pin SFIC option available
- Keyway options: LFIC (SCHRC-Schlage), Non-IC (COR-Corbin-Russwin, MED-Medeco, SAR-Sargent, SCH-Schlage, YAL-Yale)
- Cycle rating: Over 4 million cycles, exceeds ANSI Grade 1 standard
