Description

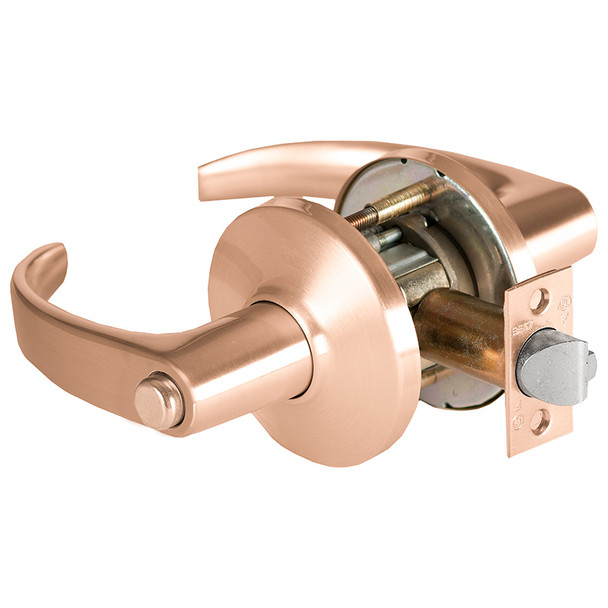

The BEST 9K40L14DSTK is a Grade 1 cylindrical lock engineered for high-traffic commercial and institutional doors requiring reliable security and durability. Built with a low-maintenance design that protects internal components from daily wear, it solves the problem of frequent lock failures and costly downtime by delivering superior performance over time with less service required.
This lock is compatible with standard 2 1/8" cross bore prep and accepts both 6-pin non-IC and SFIC keying options across multiple keyway systems (Schlage, Corbin-Russwin, Medeco, Sargent, Yale). As an authorized BEST dealer, E.D. Locks provides expert guidance on keying, masterkeying, and installation. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Grade: 1
- Latch: Solid stainless steel, 9/16" throw
- Lever handles: Plated zinc alloy
- Trim: Satin stainless
- Chassis: Zinc alloy and corrosion-treated steel, 2 1/16" diameter
- Door thickness: 1 3/4" or 2 1/4" (spacers available for 1 3/8")
- Backset: 2 3/4" standard (3 1/2" and 5" available)
- Door prep: 2 1/8" diameter cross bore
- Keying: 6-pin non-IC brass or 6-7-pin SFIC
- Keyway options: LFIC (Schlage), Non-IC (Corbin-Russwin, Medeco, Sargent, Schlage, Yale)
- Strike: ANSI 2 3/4" standard (additional options available)
- Cycle tested: Over 4 million cycles, exceeds ANSI Grade 1 standard
