Description

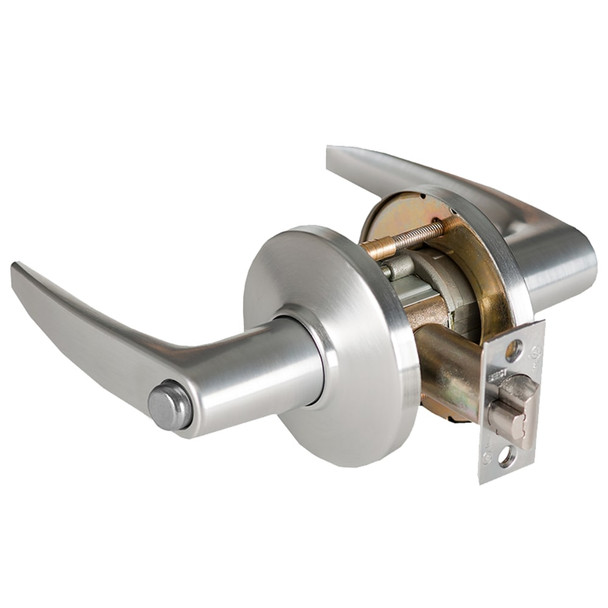

The BEST 9K40L16DS is a Grade 1 cylindrical lock engineered for high-traffic commercial and institutional doors. Built to withstand over 4 million cycles while resisting lever sag and daily abuse, this lock delivers dependable security with minimal maintenance, lowering your cost of ownership over time.
The 9K40L16DS features an interchangeable core for quick rekeying, a pre-assembled hub that installs in 5 steps, and compatibility with standard 2 1/8" cross-bore door prep. Available for 1 3/4" or 2 1/4" doors with adjustable backsets. As an authorized BEST dealer, E.D. Locks provides expert guidance on keying options, masterkeying, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for personalized assistance.
Specifications
- Grade: 1
- Latch: solid stainless steel, 9/16" throw, 2 1/4" and 1 1/8" beveled
- Lever handles: plated zinc alloy
- Trim finish: satin chrome
- Strike: ANSI 2 3/4" standard (ANSI S3 4 7/8", ANSI S3 7/8" flat, and 7/8" flat available)
- Chassis: zinc alloy and corrosion-treated steel, 2 1/16" diameter
- Door thickness: 1 3/4" or 2 1/4" (spacers available for 1 3/8")
- Door prep: 2 1/8" diameter cross bore
- Backset: 2 3/4" standard (3 2/4" and 5" available)
- Cylinder: 6-pin non-IC brass or 6-/7-pin SFIC option
- Keyways: LFIC (SCHRC-Schlage), Non-IC (COR-Corbin-Russwin, MED-Medeco, SAR-Sargent, SCH-Schlage, YAL-Yale)
- Cycle rating: exceeds 4 million cycles
