Description

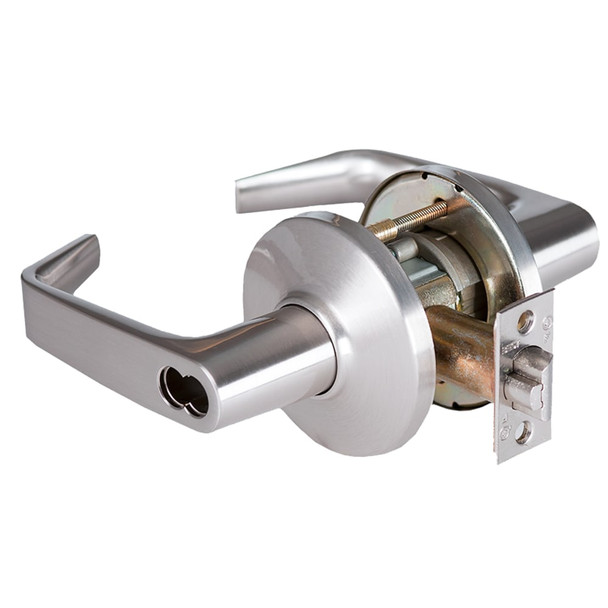

The BEST 9K47G15DS is a Grade 1 cylindrical lock engineered for demanding commercial and institutional applications. Built to withstand over 4 million cycles and designed for low-maintenance operation, this lock solves the problem of frequent repairs and downtime in high-traffic facilities by protecting internal components from daily wear and abuse.
This lock works with standard 2 1/8 inch cross-bore preparations on 1 3/4 inch or 2 1/4 inch doors, and features an interchangeable SFIC core for quick rekeying and masterkeying flexibility. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert assistance selecting the right keyway and configuration for your security needs.
Specifications
- Grade: 1
- Latch: solid stainless steel, 9/16 inch throw
- Lever handles: plated zinc alloy
- Finish: satin chrome (DS)
- Trim: brass or bronze
- Chassis: zinc alloy and corrosion-treated steel, 2 1/16 inch diameter
- Door thickness: 1 3/4 inch or 2 1/4 inch (spacers available for 1 3/8 inch)
- Door prep: 2 1/8 inch diameter cross bore
- Backset: 2 3/4 inch standard (3 2/4 inch and 5 inch available)
- Strike: ANSI 2 3/4 inch standard (additional options available)
- Keying: 6-pin non-IC or 6/7-pin SFIC
- Keyway options: LFIC, Non-IC (COR, MED, SAR, SCH, YAL)
- Cycle rating: over 4 million cycles, exceeds ANSI Grade 1
