Description

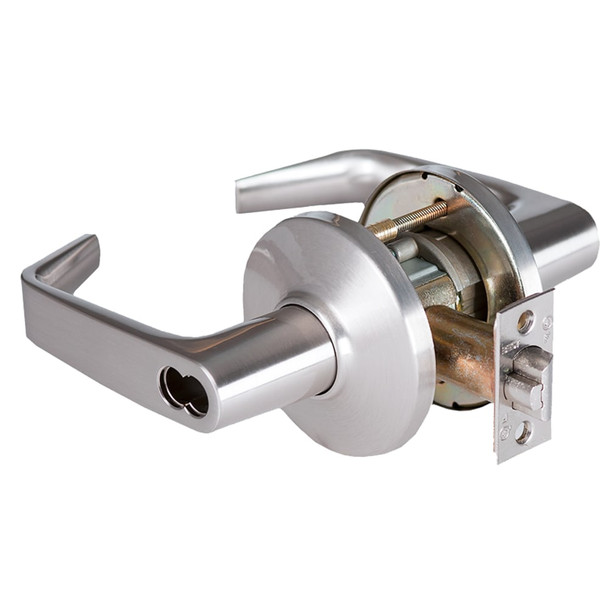

The BEST 9K is a Grade 1 cylindrical lock engineered for demanding commercial and institutional applications. Built for durability and low maintenance, it protects critical components from daily wear and abuse, reducing cost of ownership over time. Tested to over 4 million cycles, it exceeds ANSI standards and resists lever sag with internal spring protection.
The 9K features interchangeable cores for quick rekeying and masterkeying flexibility, with pre-assembled hub design for fast installation in five steps. Compatible with 1 3/4" and 2 1/4" doors, plus spacers for 1 3/8" doors. Available in multiple keyway options including Schlage, Corbin-Russwin, Medeco, Sargent, and Yale. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for keying guidance and expert support.
Specifications
- Grade: 1
- Latch: solid stainless steel, 9/16" throw, 2 1/4" and 1 1/8" beveled front
- Lever handles: plated zinc alloy
- Trim: brass or bronze
- Strike: ANSI 2 3/4" standard, ANSI S3 4 7/8", ANSI S3 7/8" flat, 7/8" flat (STK) available
- Chassis: zinc alloy and corrosion-treated steel, 2 1/16" diameter
- Door thickness: 1 3/4" or 2 1/4", spacers for 1 3/8"
- Door prep: 2 1/8" diameter cross bore
- Backset: 2 3/4" standard, 3 1/2" and 5" available
- Keying: 6-pin non-IC brass cylinder, 6- or 7-pin SFIC option
- Keyway options: LFIC Schlage (SCHRC), Non-IC Corbin-Russwin (COR), Medeco (MED), Sargent (SAR), Schlage (SCH), Yale (YAL)
- Cycle rating: over 4 million cycles
