Description

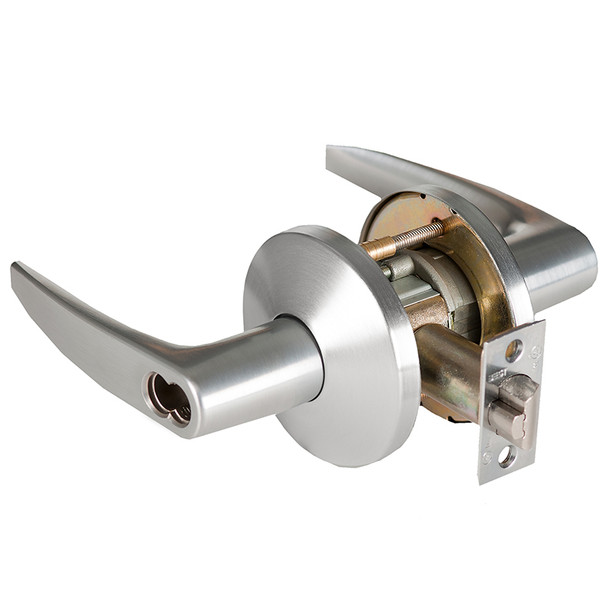

The BEST 9K47D16LS3626 is a Grade 1 cylindrical lock engineered for demanding commercial and institutional environments. Tested to over 4 million cycles, it delivers superior durability and security while minimizing maintenance. The low-maintenance design protects critical components from daily wear, reducing long-term ownership costs and extending lock life compared to standard cylindrical locks.
This lock features a pre-assembled hub design for quick installation, interchangeable SFIC core for easy rekeying and masterkeying, and compatibility with multiple keyway options including Schlage, Yale, Medeco, and Sargent. Available for 1 3/4" and 2 1/4" doors with adjustable backsets. Contact an E.D. Locks specialist at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, finish selection, and strike options.
Specifications
- Grade 1 Security Rating
- Latch: solid stainless steel, 9/16" throw, 2 1/4" and 1 1/8" beveled front
- Lever handles: plated zinc alloy
- Trim: brass or bronze
- Strike: ANSI 2 3/4" standard; ANSI S3 4 7/8", ANSI S3 7/8" flat, and 7/8" flat strike available
- Chassis: zinc alloy and corrosion-treated steel, 2 1/16" diameter
- Door thickness: 1 3/4" or 2 1/4"; spacers available for 1 3/8"
- Door prep: 2 1/8" diameter cross bore
- Backset: 2 3/4" standard; 3 1/4" and 5" available
- Keying: 6-pin non-IC brass cylinder or 6/7-pin SFIC option
- Keyway options: LFIC (Schlage), Non-IC (Corbin-Russwin, Medeco, Sargent, Schlage, Yale)
- Cycle tested: 4 million+ cycles, exceeds ANSI Grade 1 standard
