Description

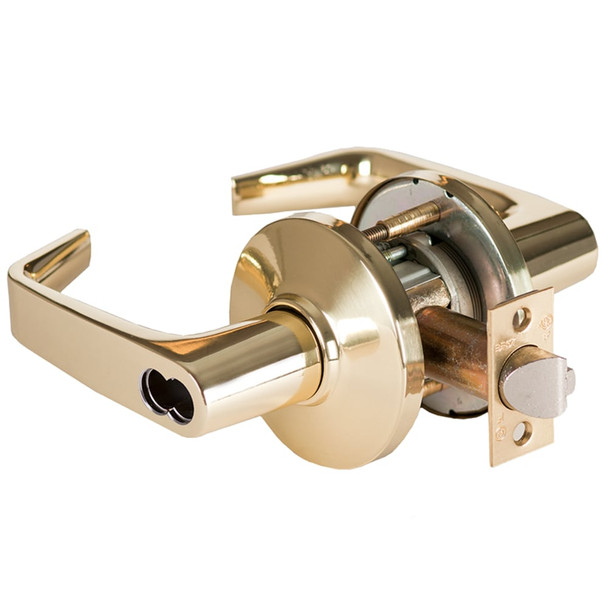

The BEST 9K47W15DS is a Grade 1 cylindrical lock engineered for demanding commercial and institutional applications where durability and security matter. Built for high-traffic doors, it solves the maintenance burden of traditional locks through low-maintenance design that protects internal components from daily wear and abuse, reducing long-term ownership costs.
This lock features interchangeable cores for quick rekeying and masterkeying flexibility, and installs in just 5 steps with its pre-assembled hub design. Available in multiple finishes and keyway options including SFIC for maximum adaptability. As an authorized BEST dealer, E.D. Locks provides expert configuration guidance and keying support at sales@edlocks.com or 1-877-207-6067.
Specifications
- Grade 1 security rating, tested to over 4 million cycles
- Latch: solid stainless steel, 9/16 inch throw, 2 1/4 inch and 1 1/8 inch beveled
- Chassis: zinc alloy and corrosion-treated steel, 2 1/16 inch diameter
- Door thickness: 1 3/4 inch or 2 1/4 inch (spacers for 1 3/8 inch)
- Door prep: 2 1/8 inch diameter cross bore
- Backset: 2 3/4 inch standard; 3 1/2 inch and 5 inch available
- Strike: ANSI 2 3/4 inch standard; ANSI S3 4 7/8 inch, 7/8 inch flat options
- Keying: 6-pin non-IC brass cylinder or 6-7 pin SFIC option
- Keyway options: LFIC, SCHRC-Schlage, COR-Corbin-Russwin, MED-Medeco, SAR-Sargent, SCH-Schlage, YAL-Yale
- Lever handles: plated zinc alloy
- Trim: brass or bronze
