Description

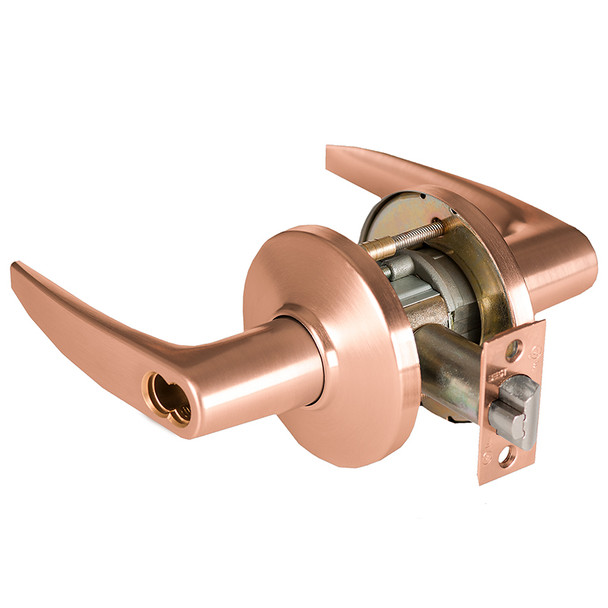

The BEST 9K47W16DSTK is a Grade 1 cylindrical lock engineered for commercial and institutional applications demanding durability and security. Built with a low-maintenance design, it protects critical components from daily wear and abuse, reducing ownership costs over time and outlasting standard locks through proven performance.
This lock fits 1 3/4" and 2 1/4" doors with 2 3/4" backset and includes a solid stainless steel 9/16" throw latch with 2 1/4" and 1 1/8" beveled front options. The interchangeable 6-pin brass cylinder supports multiple keyway options (Schlage, Corbin-Russwin, Medeco, Sargent, Yale). Contact an authorized E.D. Locks expert at sales@edlocks.com or 1-877-207-6067 for keying guidance and installation support.
Specifications
- Grade: 1
- Latch: solid stainless steel, 9/16" throw; front 2 1/4" and 1 1/8" beveled
- Lever handles: plated zinc alloy
- Trim: brass or bronze
- Strike: ANSI 2 3/4" standard; ANSI S3 4 7/8", ANSI S3 7/8" flat, and 7/8" flat strike (STK) available
- Chassis: zinc alloy and corrosion-treated steel; 2 1/16" diameter
- Door thickness: 1 3/4" or 2 1/4"; spacers available for 1 3/8" door
- Door prep: 2 1/8" diameter cross bore
- Backset: 2 3/4" standard; 3 2/4" and 5" available
- Keying: 6-pin non-IC brass cylinder; 6- or 7-pin SFIC option available
- Keyway options: LFIC: SCHRC-Schlage, Non-IC: COR-Corbin-Russwin, MED-Medeco, SAR-Sargent, SCH-Schlage, YAL-Yale
- Cycle rating: over 4 million cycles (exceeds ANSI Grade 1 standard)
