Description

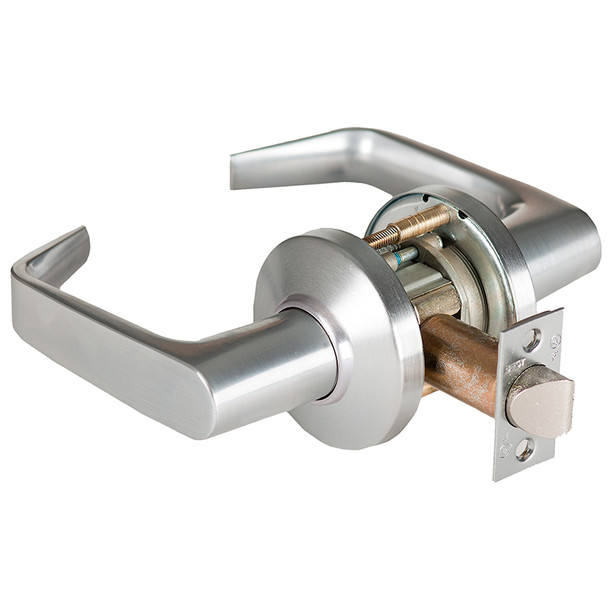

The BEST 9K is a Grade 1 cylindrical lock engineered for demanding commercial and institutional environments. Tested to over 4 million cycles, it delivers superior security and durability while minimizing maintenance needs. The robust stainless steel latch and protected lever return springs prevent common wear issues, making it ideal for high-traffic doors where reliability and long service life matter.
This lock features quick rekeying via BEST interchangeable core, pre-assembled hub design for fast installation, and multiple strike and backset options to fit most door configurations. Available in 6-pin non-IC and SFIC keying with multiple keyway choices. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for help selecting the right keying and configuration for your project.
Specifications
- Grade: 1
- Latch: solid stainless steel, 9/16 inch throw
- Latch face: 2 1/4 inch and 1 1/8 inch beveled
- Lever handles: plated zinc alloy
- Trim: brass or bronze
- Strike: ANSI 2 3/4 inch standard; ANSI S3 4 7/8 inch, ANSI S3 7/8 inch flat, and 7/8 inch flat available
- Chassis: zinc alloy and corrosion-treated steel, 2 1/16 inch diameter
- Door thickness: 1 3/4 inch or 2 1/4 inch; spacers available for 1 3/8 inch
- Door prep: 2 1/8 inch diameter cross bore
- Backset: 2 3/4 inch standard; 3 1/2 inch and 5 inch available
- Keying: 6-pin non-IC brass cylinder or 6-pin and 7-pin SFIC option
- Keyway options: LFIC (Schlage), Non-IC (Corbin-Russwin, Medeco, Sargent, Schlage, Yale)
- Cycle rating: exceeds 4 million cycles
