Description

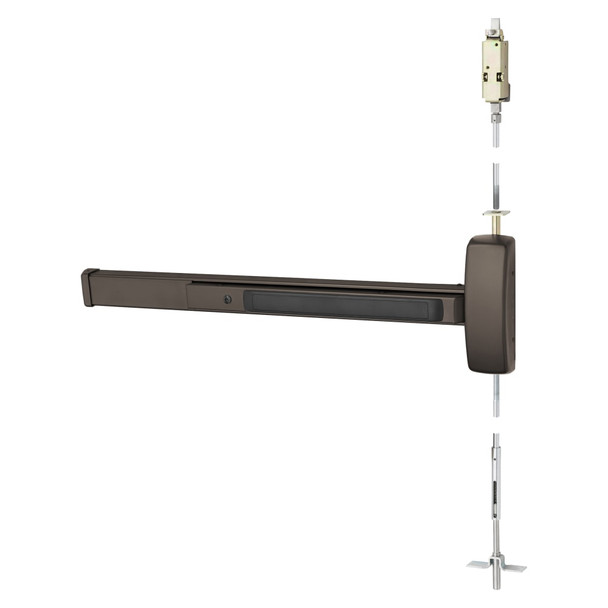

The Sargent 80 Series exit device is a heavy-duty panic hardware solution designed for commercial and institutional buildings requiring Grade 1 security and reliability. This rim-mounted device with right-hand reverse (RHR) orientation and 10BE finish exceeds ANSI/BHMA Grade 1 standards for cycle and strength, making it ideal for high-traffic metal doors in schools, offices, healthcare and industrial facilities.
This device is compatible with metal doors 1.75 inches minimum thickness and accommodates door widths from 24 to 48 inches using four available rail sizes (E, F, J, G). Installation uses standard machine screws with stainless steel top bolt. For sizing, keying, electric option selection (alarm, latch monitoring, delayed egress, photoluminescent coating), and configuration assistance, contact our authorized dealer specialists at sales@edlocks.com or call 1-877-207-6067 for expert guidance.
Specifications
- Brand: Sargent
- Model: AD8643F RHR 10BE
- Type: Rim Exit Device (80 Series)
- Orientation: Right Hand Reverse (RHR)
- Finish: 10BE
- Door Thickness: 1.75 inches minimum; up to 2.25 inches with specification
- Minimum Stile Width: 4.5 inches
- Device Centerline from Floor: 41 inches (standard); 38 inches (elementary schools/accessibility)
- Center Case Dimensions: 8.375 inches x 2.625 inches
- Pushbar Projection: 3 inches (neutral); 2.125 inches (depressed)
- Door Width Range: 24 to 48 inches
- Rail Options: E (24-32 inches); F (33-36 inches); J (37-42 inches); G (43-48 inches)
- Strikes: 650 Top Strike and 606 Bottom Strike (panic and fire-rated)
- Dogging: Hex key standard; cylinder dogging available
- Maximum Door Height: 96 inches
- Maximum Opening Height: 120 inches
- Fasteners: Machine screws supplied; stainless steel top bolt
- Standards: Exceeds ANSI/BHMA Grade 1
