Description
The Sargent 80 Series exit device is a heavy-duty panic bar solution for metal doors in commercial and institutional buildings. Designed for environments demanding ANSI/BHMA Grade 1 strength and durability, it features modular construction with minimal moving parts, making it maintenance-free and ideal for facilities prioritizing security and long-term reliability.
This right-hand reverse (RHR) model works with metal doors 1 3/4 inch minimum thickness and is available in multiple rail sizes (E, F, J, G) to fit door widths from 24 to 48 inches. Optional features include delayed egress, alarmed exit, and electric latch retraction. Contact an E.D. Locks authorized dealer at sales@edlocks.com or 1-877-207-6067 for expert guidance on configuration, keying, and compatibility with your specific opening.
Specifications

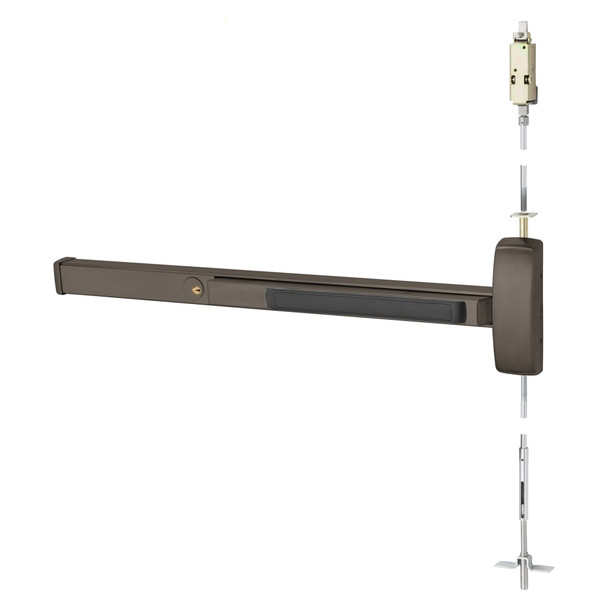

- Model: 16-AD8643F RHR 10BE
- Brand: Sargent
- Series: 80 Series
- Configuration: Right-Hand Reverse (RHR)
- Door Type: Metal doors, 1 3/4 inch (44mm) minimum thickness
- Maximum Door Height: 96 inches
- Device Centerline: 41 inches (1041mm) from finished floor, standard applications; 38 inches (965mm) for elementary schools
- Center Case Dimensions: 8 3/8 inch (213mm) x 2 5/8 inch (67mm)
- Pushbar Neutral Projection: 3 inches (76mm)
- Pushbar Depressed Projection: 2 1/8 inches (54mm)
- Top Bolt: Stainless steel
- Strike: 650 Top Strike and 606 Bottom Strike (panic and fire rated)
- Dogging: Hex key dogging standard on non fire-rated devices
- Rail Options: E Rail (24-32 inch doors), F Rail (33-36 inch doors), J Rail (37-42 inch doors), G Rail (43-48 inch doors)
- Fasteners: Machine screws supplied standard
- Available Options: Alarm (AL), Beacon (BT), Photoluminescent Coating (PL), Illuminated Touchpad (TL), Latchbolt Monitor (53), Outside Lever Monitoring (54), Request-to-Exit Signal (55), Remote Latch Retraction (56), Delayed Egress with Electromagnets (57), Electric Dogging (58), Electroguard Self-Contained Delayed Egress (59)
