Description

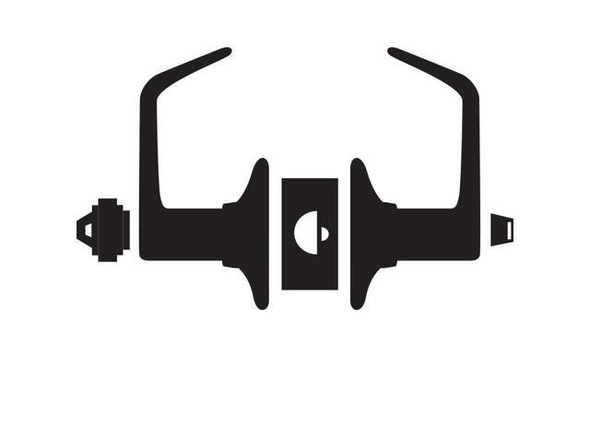

The Schlage AL50LD is a Grade 2 lever lock engineered for high-traffic commercial environments. Ideal for office buildings, banks, retail spaces, and hotels, this ADA-compliant lock delivers dependable performance on interior and entrance doors where security and accessibility matter equally.
Fits standard door thickness of 1 3/8" to 1 7/8" with a 2 3/4" backset (other sizes available). Features a steel front, brass chrome-plated latch bolt with 1/2" throw, and comes keyed with the Everest 29 S123 keyway and two nickel silver keys. As an authorized Schlage dealer, E.D. Locks offers master keying options, construction keying, and expert guidance. Contact sales@edlocks.com or call 1-877-207-6067 for specifications and custom configurations.
Specifications
- Grade: 2
- Door Thickness: 1 3/8" to 1 7/8" standard (2" optional)
- Backset: 2 3/4" standard (2 3/8", 3 3/4", 5" optional)
- Front Material: Steel, 2 1/4" x 1 1/8" square corner, beveled
- Latch Bolt: Brass, chrome plated, 1/2" throw, deadlocking
- Lock Chassis: Steel, zinc dichromated
- Trim: Wrought brass and bronze; levers pressure cast zinc
- Strike: ANSI curved lip, 4 7/8" x 1 1/4" x 1 1/4" standard
- Cylinder: 6-pin Everest 29 S123 keyway
- Keys: Two nickel silver keys per lock
- Keying Options: Interchangeable core, Primus high security, master keying, grand master keying, construction keying
- Handing: Non-handed
- Warranty: Three-year limited
