Description

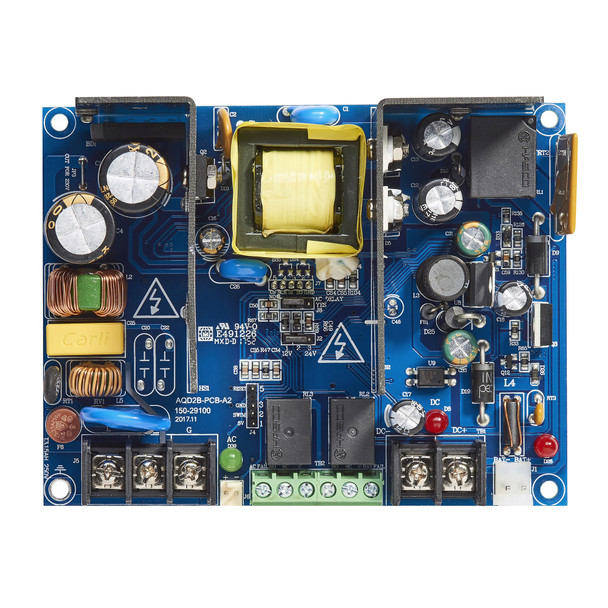

The Securitron AQD2-1R is a dual-voltage switching power supply with integrated battery charger, designed for access control systems and electrified door hardware. It delivers up to 2A at 12VDC or 1.5A at 24VDC with eight independently controlled, power-limited outputs. Built-in supervision, low-battery disconnect, and thermal shutdown protection make it ideal for facilities requiring reliable backup power and fault monitoring.
The AQD2-1R accepts universal input (90-240 VAC), supports up to two sealed gel, AGM, or lead-acid batteries, and includes a 14" x 9" x 3.5" cabinet. As an authorized Securitron dealer, E.D. Locks provides expert guidance on configuration, battery selection, and integration with your access control system. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for installation support and warranty details.
Specifications
- Output: 2A @ 12VDC or 1.5A @ 24VDC maximum
- Continuous Output: 2.8A/1.4A
- Input Voltage: 90-240 VAC universal
- Field Selectable: 12/24 VDC dual-voltage
- Power-Limited Outputs: Up to 8 independently controlled
- Battery Support: Up to 2 sealed gel, AGM, or wet lead-acid batteries
- Cabinet Dimensions: 14" x 9" x 3.5"
- Operating Temperature: -4 to +104 F (-20 to +40 C)
- Protection: Thermal shutdown with auto restart, circuit breaker, low-battery disconnect
- Supervision: LED indicators and form C contacts
- Class 2 Power Limited
